120 mm sheave with U groove - 240 kg
Show all:
Cable pulleys
Description
120 mm steel cable disc with groove - 240 kg (grooved wheel)
Steel cable disc (galvanised) with a ball bearing.
The pulleys have a round groove.
Read more

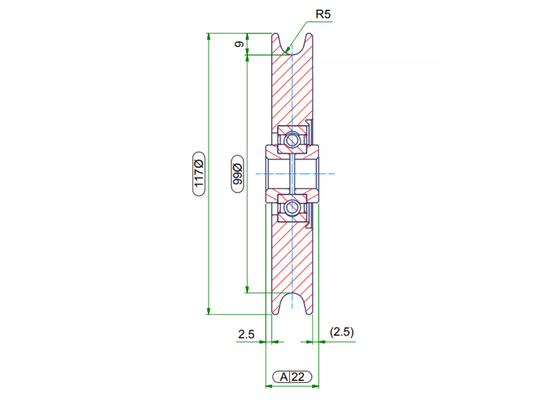

Specifications
- Article number: 178.422
- Wheel diameter: 117 mm
- Wheel width: 17 mm
- Shaft diameter: 12.2 mm
- Hub length: 22 mm
- Groove radius: 4 mm
- Groove depth: 9 mm
- Carrying capacity: 240 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Steel, galvanized
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
Related products
Specifications
- Article number: 178.422
- Wheel diameter: 117 mm
- Wheel width: 17 mm
- Shaft diameter: 12.2 mm
- Hub length: 22 mm
- Groove radius: 4 mm
- Groove depth: 9 mm
- Carrying capacity: 240 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Steel, galvanized
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
