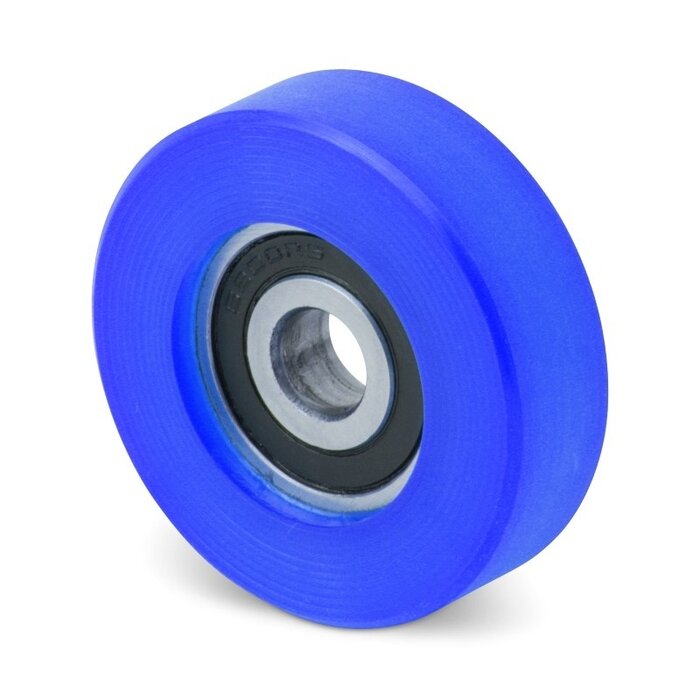

30 mm guide roller - polyurethane - 22 kg
Show all:
Guide rollers
Description
PU guide roller 30x11 mm with ball bearing, 8 mm bore - 22 kg
Guide rollers with an injected blue polyurethane tyre (approx. 90 Shore) and 1 ball bearing.
The rollers are resistant to oil, grease and numerous chemicals.
The bandage is shock-absorbing, wear-resistant and can withstand heavy loads.
Read more

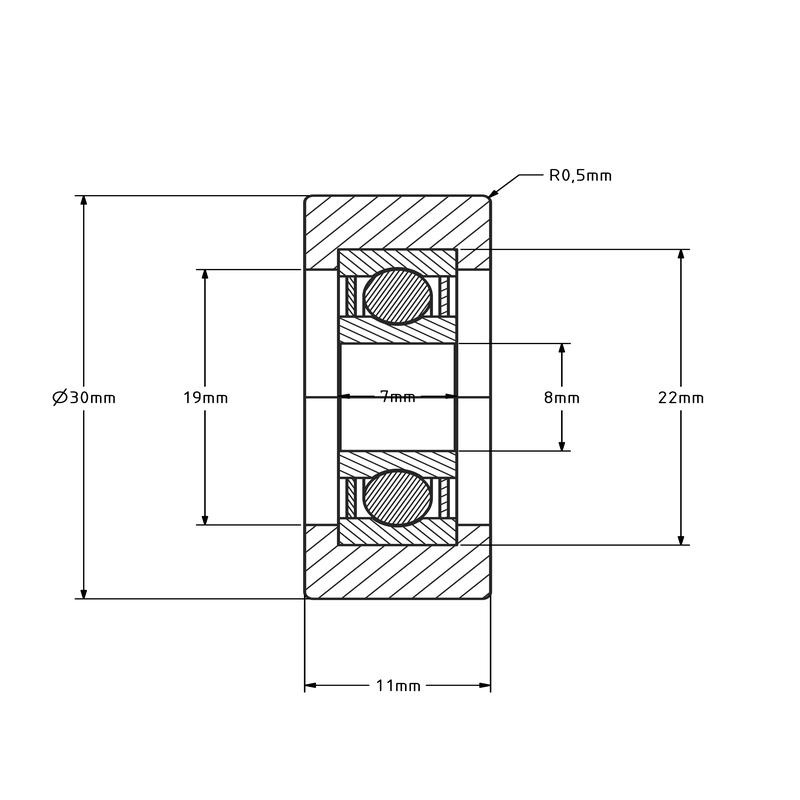

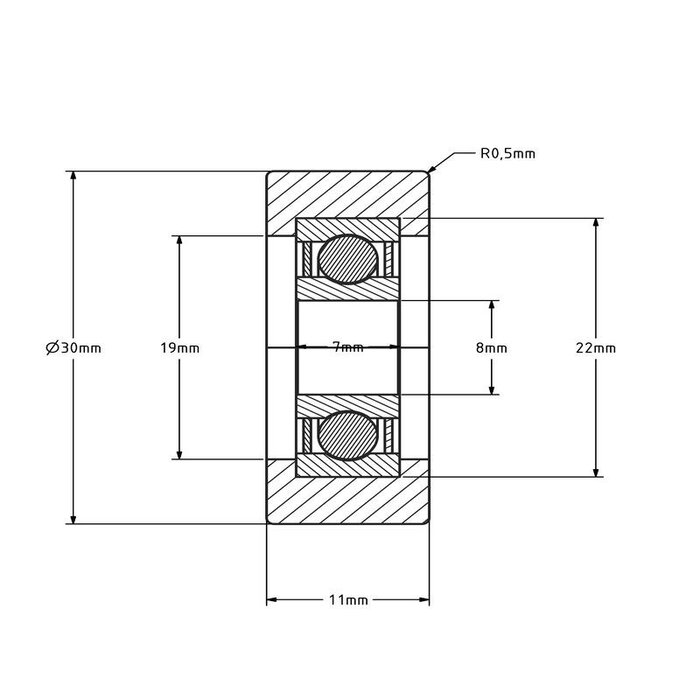

Specifications
- Article number: 193.208.BL
- Wheel diameter: 30 mm
- Shaft diameter: 8 mm
- Hub length: 7 mm
- Carrying capacity: 22 kg
- Type of wheel: Guide roller
- Bearing type: 608 2RS
- Temperature: - 20 / + 80 °C
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyurethane, injected
- Tyre hardness: 90 Shore A
- Wheel width: 11 mm
