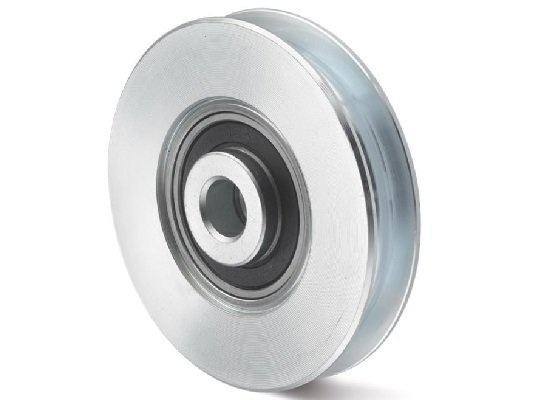

40 mm pulley with U groove - 85 kg
Show all:
Cable pulleys
Description
Grooved wheel 40 mm steel with round groove for 7 mm cable - 85 kg
Hardened steel cable disc (galvanised) with a cone ball bearing.
The pulleys have a round groove for a cable with a maximum diameter of 7 mm.
Read more
Specifications
- Article number: 178.412
- Wheel diameter: 40 mm
- Wheel width: 11 mm
- Shaft diameter: 8.1 mm
- Hub length: 12 mm
- Groove radius: 3.5 mm
- Groove depth: 3.5 mm
- Carrying capacity: 85 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Steel, galvanized
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
