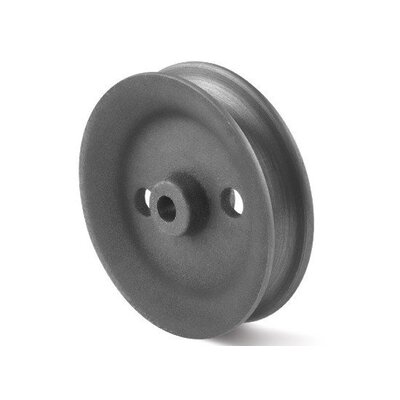

40 mm sheave with U-groove - 18 kg
Show all:
Cable pulleys
Description
Cast iron pulley 40 mm with groove - 18 kg (grooved wheel)
Cast iron pulley with a plain bearing.
The pulleys have a round groove.
Read more
Specifications
- Article number: 178.715
- Wheel diameter: 40 mm
- Wheel width: 11.5 mm
- Shaft diameter: 5.1 mm
- Hub length: 12.5 mm
- Hub diameter: 10 mm
- Groove radius: 3 mm
- Groove depth: 4 mm
- Carrying capacity: 18 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Cast Iron
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
Specifications
- Article number: 178.715
- Wheel diameter: 40 mm
- Wheel width: 11.5 mm
- Shaft diameter: 5.1 mm
- Hub length: 12.5 mm
- Hub diameter: 10 mm
- Groove radius: 3 mm
- Groove depth: 4 mm
- Carrying capacity: 18 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Cast Iron
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
