70 mm sheave with U-shaped groove - 22 kg
Show all:
Cable pulleys
Description

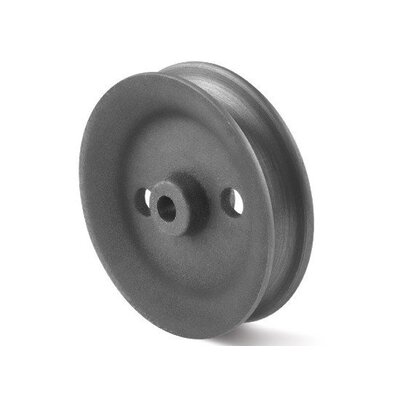

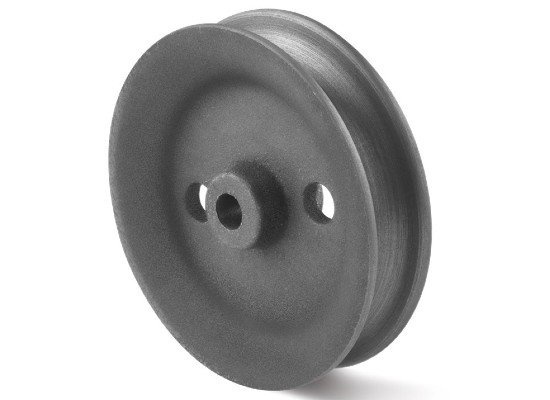

Cast iron pulley 70 mm with groove - 22 kg (grooved wheel)
Cast iron pulley with a plain bearing.
The pulleys have a round groove.
Read more
Specifications
- Article number: 178.730
- Wheel diameter: 70 mm
- Wheel width: 13 mm
- Shaft diameter: 5.1 mm
- Hub length: 14.5 mm
- Hub diameter: 18 mm
- Groove radius: 4 mm
- Groove depth: 6 mm
- Carrying capacity: 22 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Cast Iron
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
Specifications
- Article number: 178.730
- Wheel diameter: 70 mm
- Wheel width: 13 mm
- Shaft diameter: 5.1 mm
- Hub length: 14.5 mm
- Hub diameter: 18 mm
- Groove radius: 4 mm
- Groove depth: 6 mm
- Carrying capacity: 22 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Cast Iron
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
