    Description

    Anti-static 100 mm castor with brake and grey rubber tyre.


    Anti-static castors with bolt hole attachment.
    Sheet steel pressed fork (galvanised ) with a double ball swivel.
    The brake simultaneously blocks the swivel and the wheel.
    Anti-static wheels with grey TPR rubber tyres (85 Shore A), injected onto a polypropylene rim with a centred ball bearing and plastic wheel covers.
    Antistatic < 10,000 ohms

    Read more

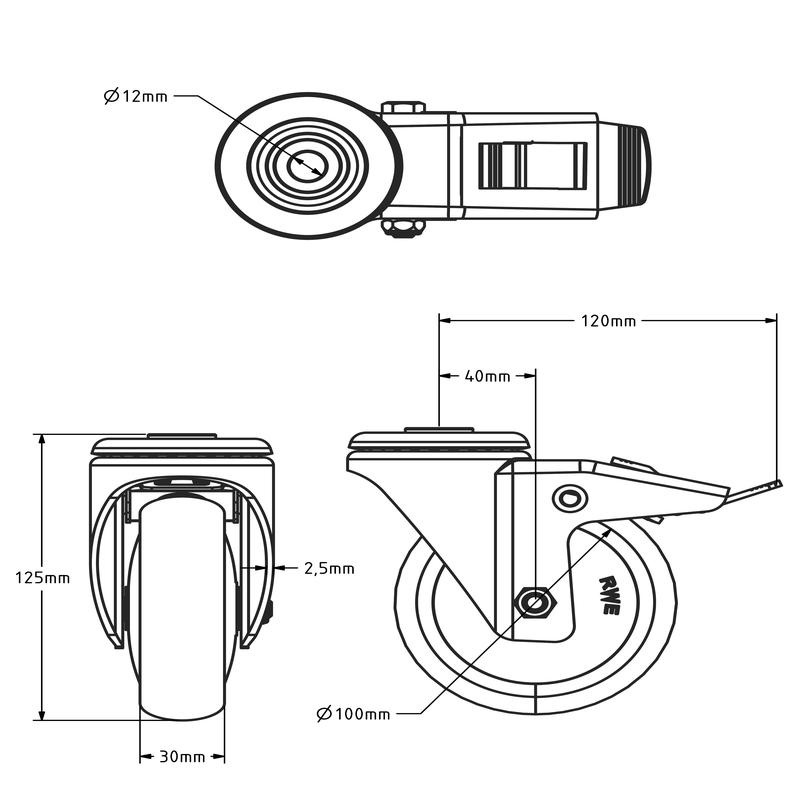

    Specifications
    • Article number: 436.616
    • Soundproof: 3
    • Electrically conductive:
    • Resistance R: 10,000 Ohms (Ω)
    • Building height: 125 mm
    • Fork: Steel, galvanized
    • Assembly: Bolt hole attachment
    • Bolt hole diameter: 12 mm
    • Rim: Polypropylene
    • Wheel width: 30 mm
    • Wheel diameter: 100 mm
    • Suitable for: Flat and rough surface
    • Carrying capacity: 90 kg
    • Wear-resistant: 3
    • Rolling resistance: 3
    • Tyre hardness: approx. 85 shore A
    • Bandage: Thermoplastic rubber (TPR), injected
    • Wheel bearing: Central ball bearing
    • Brake: Locks wheel and swivel simultaneously
    • Type of wheel: Swivel castor with brake
    • Gaff rash: 40 mm
    • Temperature: - 20 / + 60 °C
