Blue rubber swivel castor with brake 80 mm - 110 kg
Show all:
Casters,Rubber wheels
Description

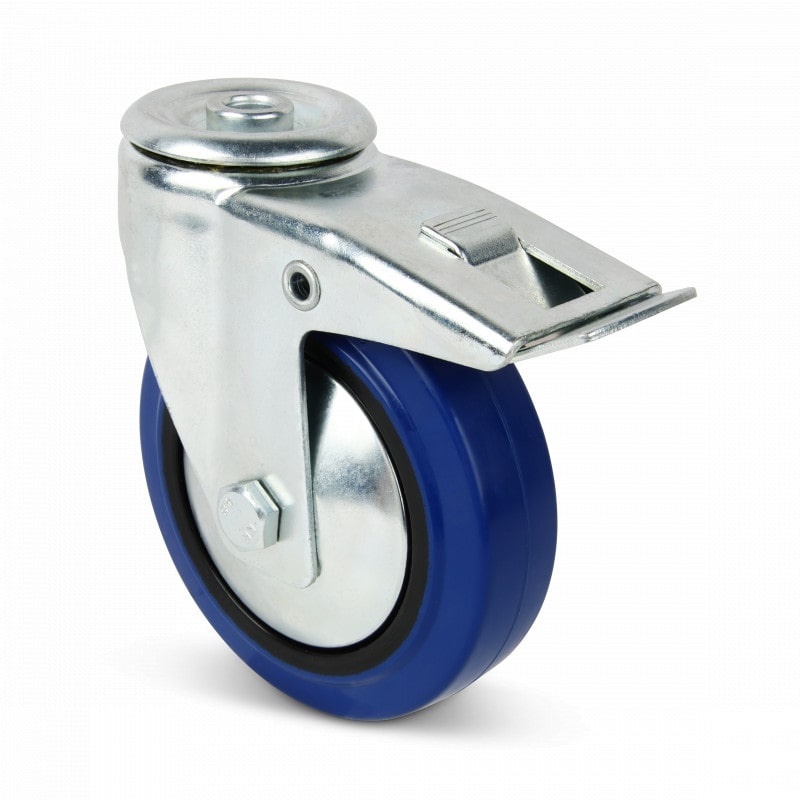

Blue elastic rubber swivel castor with brake 80 mm - 110 kg
Caster with brake and bolt hole attachment.
Sheet steel pressed fork (galvanised ) with a double ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Wheels with blue elastic rubber tyres (approx. 65 Shore A), vulcanised onto black plastic rims with roller bearings and galvanised wheel covers.
Read more

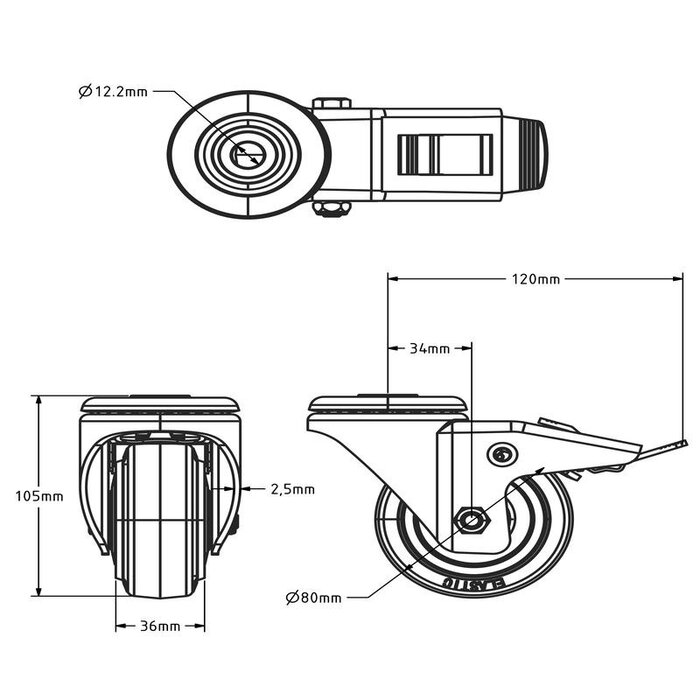

Specifications
- Article number: 414.511
- Bandage: Blue elastic rubber, vulcanized
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 65 shore A
- Wheel diameter: 80 mm
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Building height: 105 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 110 kg
- Wheel width: 36 mm
Show all
Specifications
- Article number: 414.511
- Bandage: Blue elastic rubber, vulcanized
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 65 shore A
- Wheel diameter: 80 mm
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Building height: 105 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 110 kg
- Wheel width: 36 mm
Show all
