Cast nylon swivel castor with brake 100 mm - 1500 kg
Show all:
Casters,Nylon wheels
Description

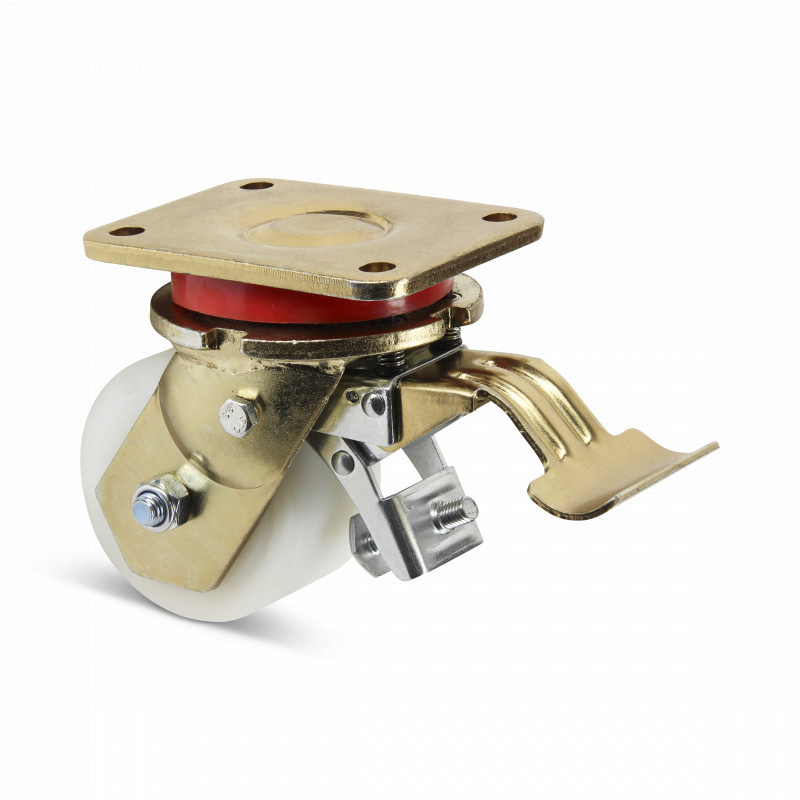

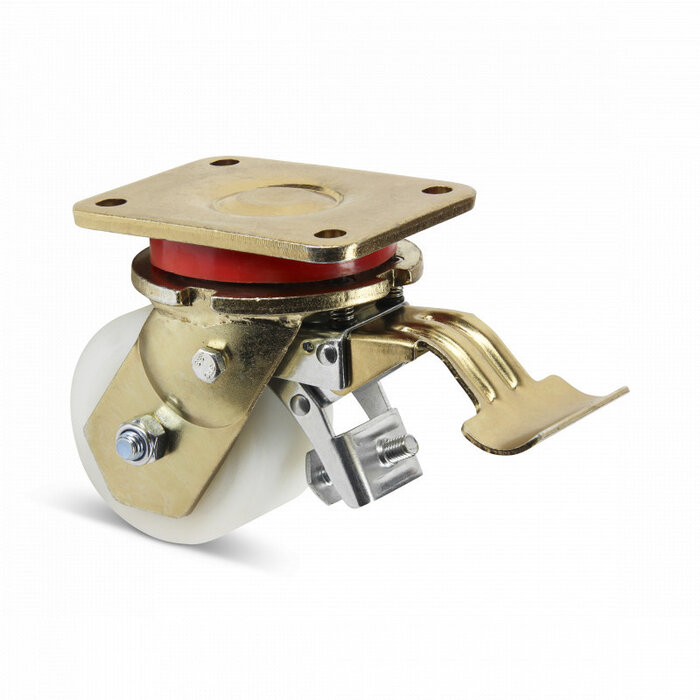

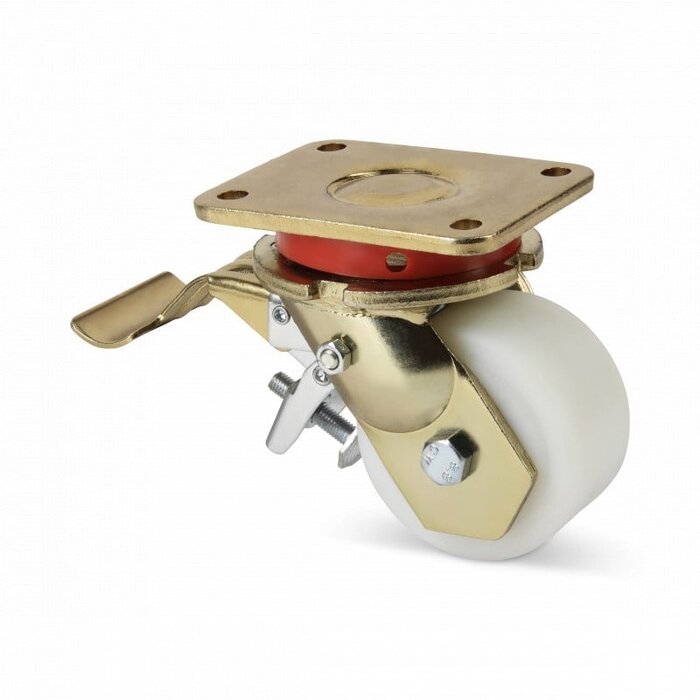

Cast nylon swivel castor with brake 100 mm - 1500 kg
Swivel castors with a plate fitting.
Sheet steel welded fork (yellow galvanised ) with an axial ball bearing and tapered roller bearing in the swivel head.
The brake simultaneously blocks the turntable and the wheel.
Cast nylon wheels with ball bearings.
Read more
Specifications
- Article number: 525.216
- Wheel diameter: 100 mm
- Fork: Yellow, passivated (galvanized)
- Assembly: Plate mount
- Bolt hole spacing: 105 x 80 / 75 - Ø 11 mm
- Building height: 148 mm
- Plate size: 135 x 110 mm
- Temperature: - 40 / + 90 °C
- Bandage: Cast nylon (PA6G)
- Wheel bearing: Double ball bearing
- Wheel width: 55 mm
- Carrying capacity: 1500 kg
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 80 shore D
- Brake: Locks wheel and swivel simultaneously
- Type of wheel: Swivel castor with brake
- Gaff rash: 42 mm
