Double black swivel castor with brake 50 mm - plate - 80 kg
Show all:
Casters,Rubber wheels
Description

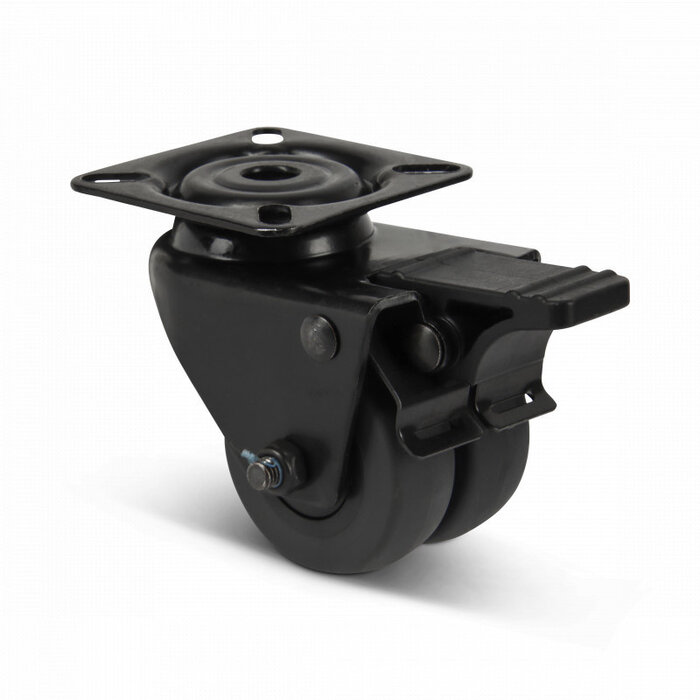

Double black swivel castor with brake 50 mm with plate
Casters with a plate attachment.
Sheet steel pressed fork with a black coating and a double ball swivel.
The brake simultaneously blocks the swivel and the wheel.
Double wheels with ablack/dark greyTPR tyre (non-marking), injected onto a plastic rim with ball bearings and black wheel caps.
The soft rubber tyre does not leave any marks on the floor, but plasticisers can be released on untreated floors.
Discounts available for orders of 80 or more, see graduated prices or contact us for a quote.
Price available on request for orders of 150 or more.
Read more
Specifications
- Article number: 384.211
- Wheel bearing: Ball bearing
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 3
- Rolling resistance: 3
- Tyre hardness: approx. 88 shore A
- Bandage: Black thermoplastic rubber (TPR), injected
- Wheel diameter: 50 mm
- Rim: Polypropylene
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, black coated
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake

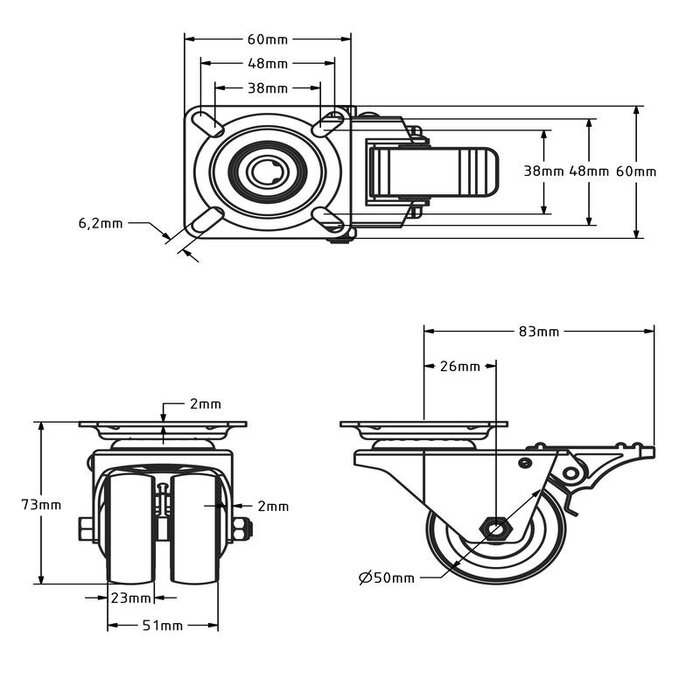

- Gaff rash: 26 mm
- Bolt hole spacing: 38x38 / 48x48 - Ø 6.2 mm
- Plate size: 60 x 60 mm
- Building height: 73 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 80 kg
- Wheel width: 23 (2x) mm
