Ergonomic PU fixed caster 160 mm - reinforced - ball bearing - 500 kg
Ergonomically designed

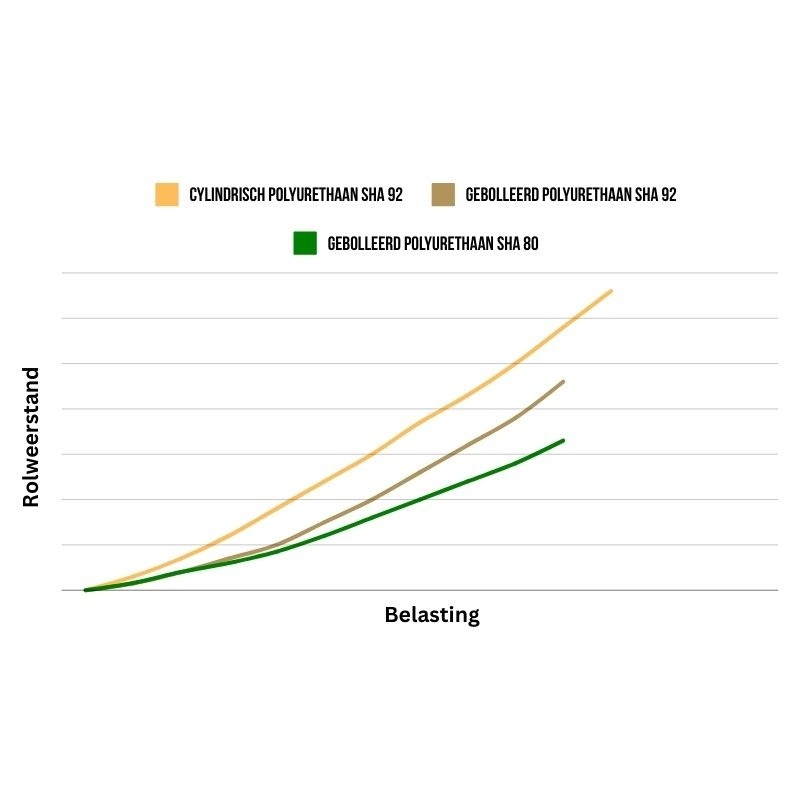

This wheel has 30% less friction with the surface compared to other traditional polyurethane or rubber types. The design makes it possible to easily move heavy loads thanks to the following characteristics.
- Elastic polyurethane: The material flexes during movement, generating extra energy to extend the rolling duration.
- Bulged tread: The limited contact with the surface means that the wheels require less force to roll and swivel.
Want to know more about the benefits and technical details? Then check out our blog about ergonomic wheels.
Shock resistant
The reinforced fork and thick, ergonomic polyurethane tire are specially designed for the intensive use of heavy-duty fork wheels. These wheels are ideal for heavily loaded transport carts that must withstand heavy goods, shock loads and peak loads. The fork has been precision pressed and consists of a 5 mm top plate and 4 mm fork legs.
Long lifespan
The polyurethane tire is highly resistant to rough surfaces such as concrete floors with steel shavings, and to dust, oil and other contaminants. The elastic ergo polyurethane ensures that the wheels roll smoothly over bumps.

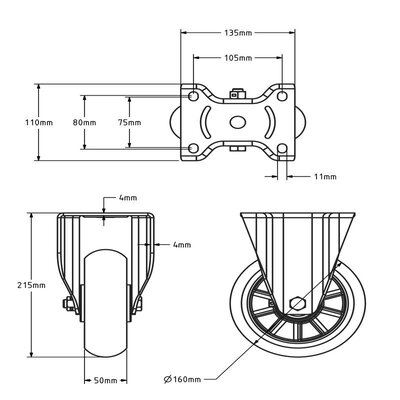

- Article number: 462.232
- Wheel diameter: 160 mm
- Wheel width: 50 mm
- Building height: 215 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Carrying capacity: 500 kg
- Type of wheel: Bucking wheel
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Aluminum
- Wheel bearing: Double ball bearing
- Bandage: ergonomic/ polyurethane
- Tyre hardness: approx. 78 shore A
- Rolling resistance: 4
- Wear-resistant: 4.5
- Soundproof: 3.5
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
- Article number: 462.232
- Wheel diameter: 160 mm
- Wheel width: 50 mm
- Building height: 215 mm
- Plate size: 135 x 110 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Carrying capacity: 500 kg
- Type of wheel: Bucking wheel
- Assembly: Plate mount
- Fork: Steel, galvanized
- Rim: Aluminum
- Wheel bearing: Double ball bearing
- Bandage: ergonomic/ polyurethane
- Tyre hardness: approx. 78 shore A
- Rolling resistance: 4
- Wear-resistant: 4.5
- Soundproof: 3.5
- Temperature: - 20 / + 80 °C
- Suitable for: Flat and rough surface
- Suitable for very intensive use
- More control over direction at longer distances
- Impact and shock resistant
- 30% less rolling resistance compared to traditional polyurethane
- Less agile
