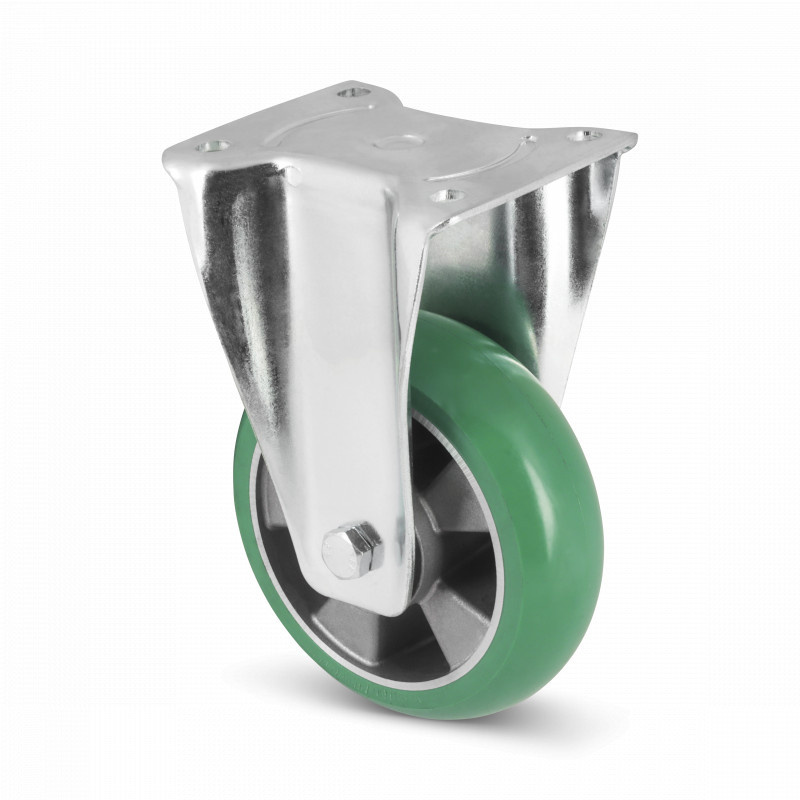

Ergonomic PU fixed caster 200 mm - reinforced - ball bearing - 700 kg
Designed for ergonomic use

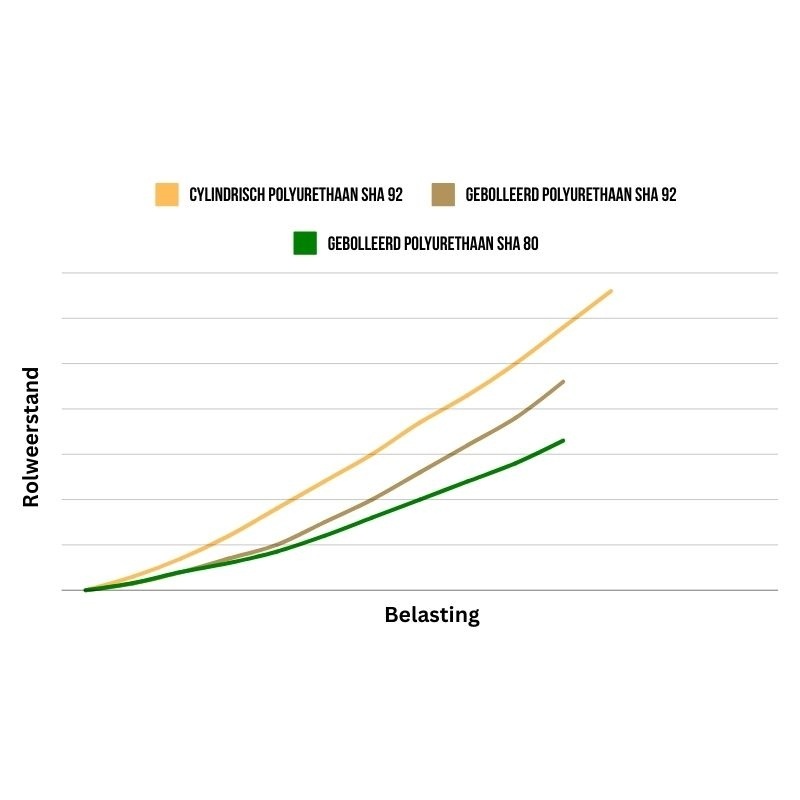

This wheel reduces friction with the surface by 30% compared to traditional polyurethane or rubber types. The design makes moving heavy loads easier due to the following characteristics.
- Elastic polyurethane – The material flexes during movement, releasing extra energy and increasing rolling duration.
- Bulged tread – Less contact with the surface ensures that the wheels roll and swivel with less force.
Read more about the technology and benefits by reading our blog about ergonomic wheels.
Shock resistant
The reinforced fork and thick polyurethane tire have been developed for intensive use with heavy-duty fixed wheels. These wheels are suitable for heavily loaded transport carts that must withstand shock and peak loads. The fixed fork is precision pressed and consists of a 5 mm thick top plate and 4 mm thick fork legs.
Durable and wear-resistant
The polyurethane tire is highly resistant to rough surfaces such as concrete floors with steel shavings, as well as to dust, oil and other contaminants. The elastic polyurethane ensures that the wheels move smoothly over uneven surfaces.
- Article number: 462.242
- Rolling resistance: 4
- Plate size: 135 x 110 mm
- Wheel diameter: 200 mm
- Suitable for: Flat and rough surface
- Soundproof: 3.5
- Wear-resistant: 4.5
- Wheel width: 50 mm
- Tyre hardness: approx. 78 shore A
- Bandage: ergonomic/ polyurethane
- Wheel bearing: Double ball bearing
- Rim: Aluminum
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Bucking wheel
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Building height: 245 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 700 kg
- Article number: 462.242
- Rolling resistance: 4
- Plate size: 135 x 110 mm
- Wheel diameter: 200 mm
- Suitable for: Flat and rough surface
- Soundproof: 3.5
- Wear-resistant: 4.5
- Wheel width: 50 mm
- Tyre hardness: approx. 78 shore A
- Bandage: ergonomic/ polyurethane
- Wheel bearing: Double ball bearing
- Rim: Aluminum
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Bucking wheel
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Building height: 245 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 700 kg
- Less agile
- 30% less rolling resistance compared to traditional polyurethane
- Impact and shock resistant
- More control over direction at longer distances
- Suitable for very intensive use
