Flange wheel 100 mm - Steel C45 - 1200 kg
Show all:
Flanged wheels
Description

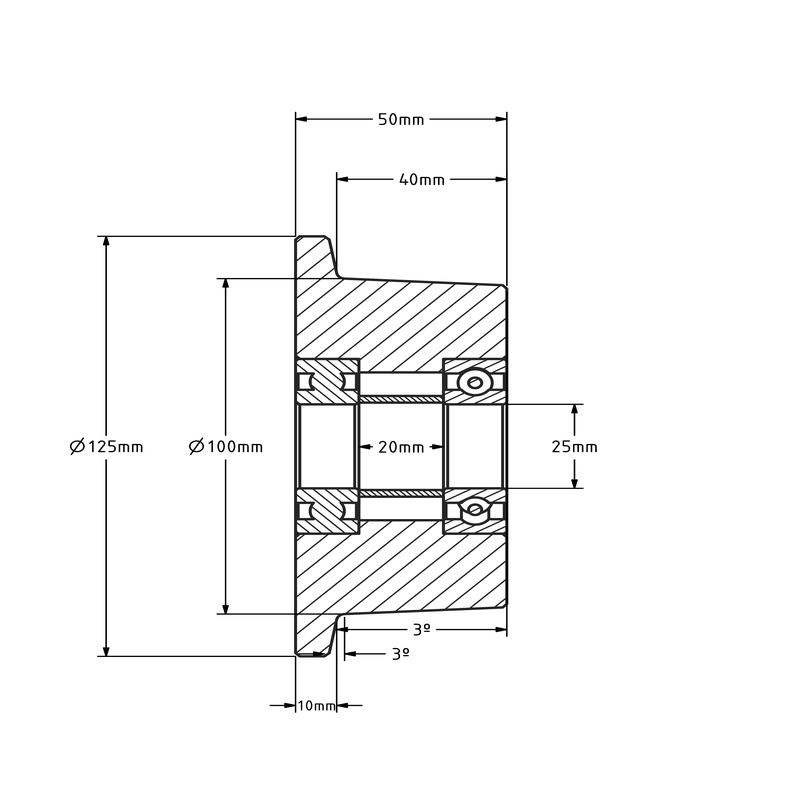

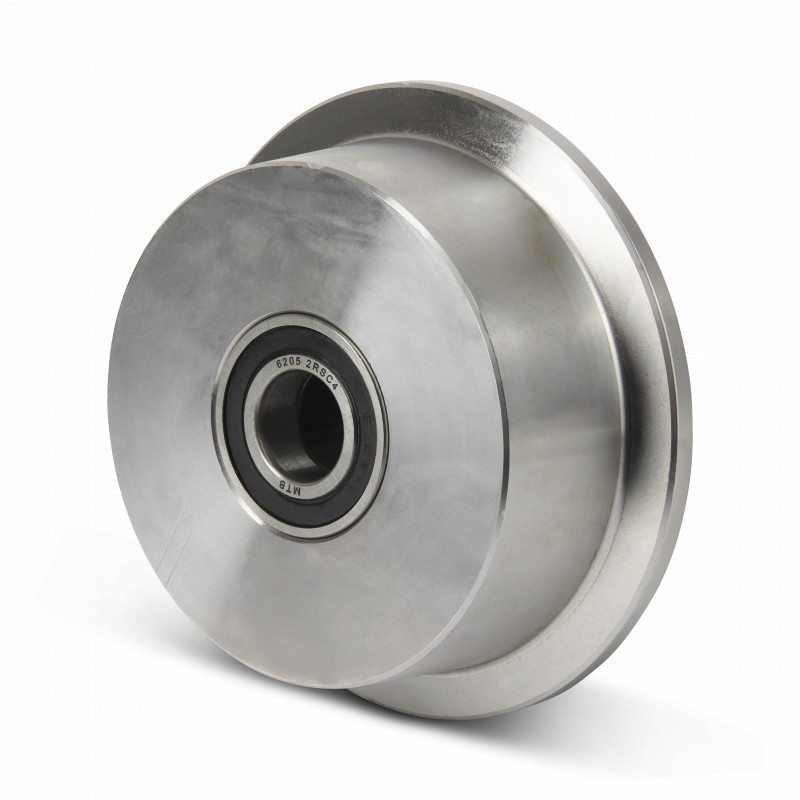

Steel flanged wheel 100 mm with ball bearings, axle hole 25 mm - 1200 kg
C45 steel flanged wheels with ball bearings.
The flanged wheel rim () and the tread are a perfect replica and have a 3º incline.
Read more
Specifications
- Article number: 941.214
- Shaft diameter: 25 mm
- Hub length: 50 mm
- Carrying capacity: 1200 kg
- Type of wheel: Flange wheel
- Wheel bearing: Double ball bearing
- Material: Steel, C45
- Wheel diameter without flange: 100 mm
- Wheel width without flange: 40 mm
- Wheel diameter with flange: 125 mm
- Wheel width with flange: 50 mm
- Tread type: Rising 3º to the axis
- Track crown: Rising 3º to the axis
Show all
Specifications
- Article number: 941.214
- Shaft diameter: 25 mm
- Hub length: 50 mm
- Carrying capacity: 1200 kg
- Type of wheel: Flange wheel
- Wheel bearing: Double ball bearing
- Material: Steel, C45
- Wheel diameter without flange: 100 mm
- Wheel width without flange: 40 mm
- Wheel diameter with flange: 125 mm
- Wheel width with flange: 50 mm
- Tread type: Rising 3º to the axis
- Track crown: Rising 3º to the axis
Show all
