Flange wheel 150 mm - cast iron - 1000 kg
Show all:
Flanged wheels
Description

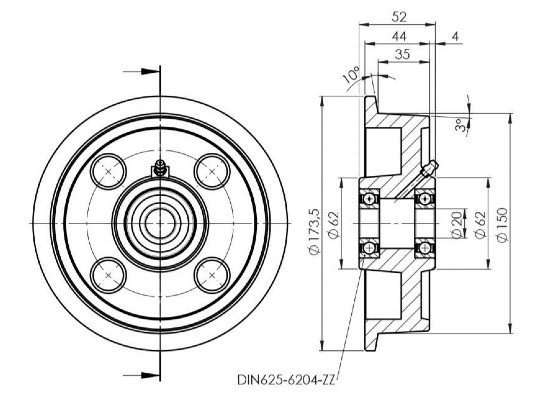

Cast iron flanged wheel 150 mm with ball bearing, axle hole 20 mm - 1000 kg
Cast iron flanged wheels with ball bearings.
The flanged wheel rim () and the tread are a perfect replica and have a 3º incline.
Read more
Specifications
- Article number: 940.216.B
- Shaft diameter: 20 mm
- Hub length: 52 mm
- Carrying capacity: 1000 kg
- Type of wheel: Flange wheel
- Wheel bearing: Double ball bearing, proportional
- Material: Cast Iron
- Wheel diameter without flange: 150 mm
- Wheel width without flange: 36 mm
- Wheel diameter with flange: 173.5 mm
- Wheel width with flange: 46 mm
- Tread type: Rising 3º to the axis
- Track crown: Rising 3º to the axis
Show all
Specifications
- Article number: 940.216.B
- Shaft diameter: 20 mm
- Hub length: 52 mm
- Carrying capacity: 1000 kg
- Type of wheel: Flange wheel
- Wheel bearing: Double ball bearing, proportional
- Material: Cast Iron
- Wheel diameter without flange: 150 mm
- Wheel width without flange: 36 mm
- Wheel diameter with flange: 173.5 mm
- Wheel width with flange: 46 mm
- Tread type: Rising 3º to the axis
- Track crown: Rising 3º to the axis
Show all
