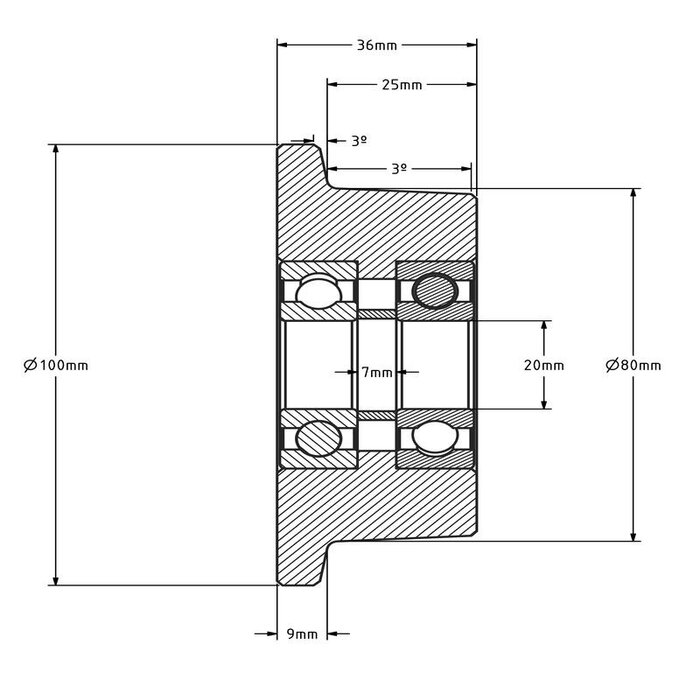

Flange wheel 80 mm - C45 steel - 1000 kg
Show all:
Flanged wheels
Description
Steel flanged wheel 80 mm with ball bearings, axle hole 20 mm - 1000 kg
C45 steel flanged wheels with ball bearings.
The flanged wheel rim () and the tread are a perfect replica and have a 3º incline.
Read more
Specifications
- Article number: 941.210
- Shaft diameter: 20 mm
- Hub length: 36 mm
- Carrying capacity: 1000 kg
- Type of wheel: Flange wheel
- Wheel bearing: Double ball bearing, proportional
- Wheel diameter without flange: 80 mm
- Wheel width without flange: 25 mm
- Wheel diameter with flange: 100 mm
- Wheel width with flange: 36 mm
- Tread type: Rising 3º to the axis
- Track crown: Rising 3º to the axis
Show all
