Flight case rubber swivel castor 125 mm - 220 kg
Show all:
Casters,Rubber wheels
Description

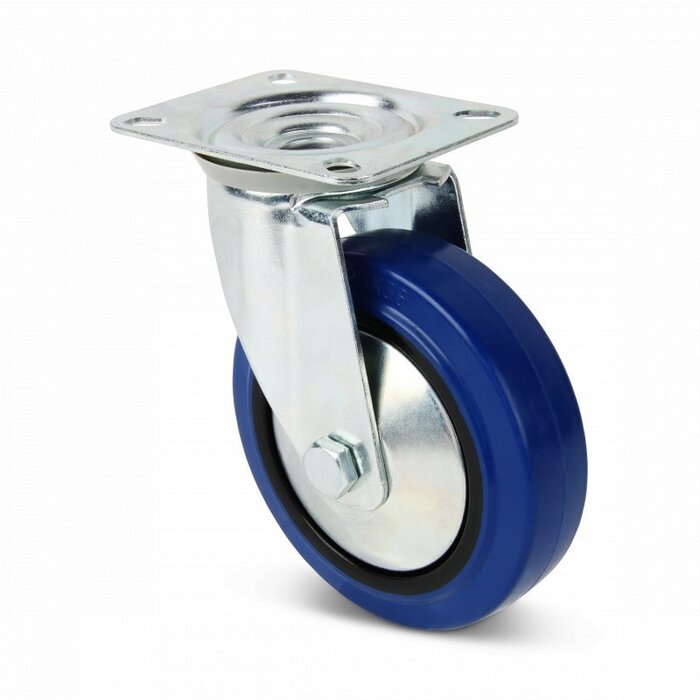

Rubber swivel castor 125 mm with plate - 220 kg
Swivel castor with plate attachment for mounting with 4 bolts.
Pressed steel fork (galvanised) with a double sealed ball swivel.
Wheels with blue elastic rubber tyres (approx. 65 Shore A), vulcanised onto black plastic rims with roller bearings and galvanised wheel covers.
Read more

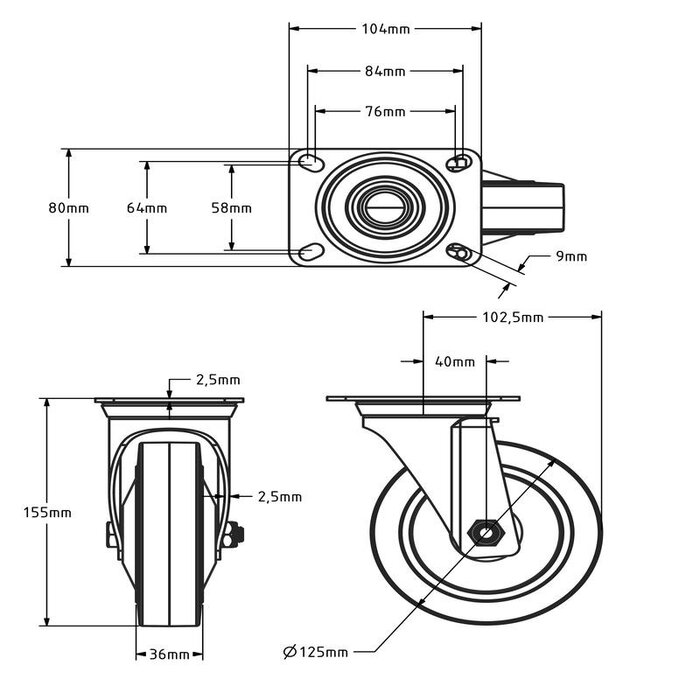

Specifications
- Article number: 414.120
- Tyre hardness: approx. 65 shore A
- Wheel width: 36 mm
- Wheel diameter: 125 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Carrying capacity: 220 kg
- Bandage: Blue elastic rubber, vulcanized
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Caster
- Gaff rash: 40 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 155 mm
- Temperature: - 20 / + 60 °C
