Flight case rubber swivel castor with brake 80 mm - 110 kg
Show all:
Casters,Rubber wheels
Description

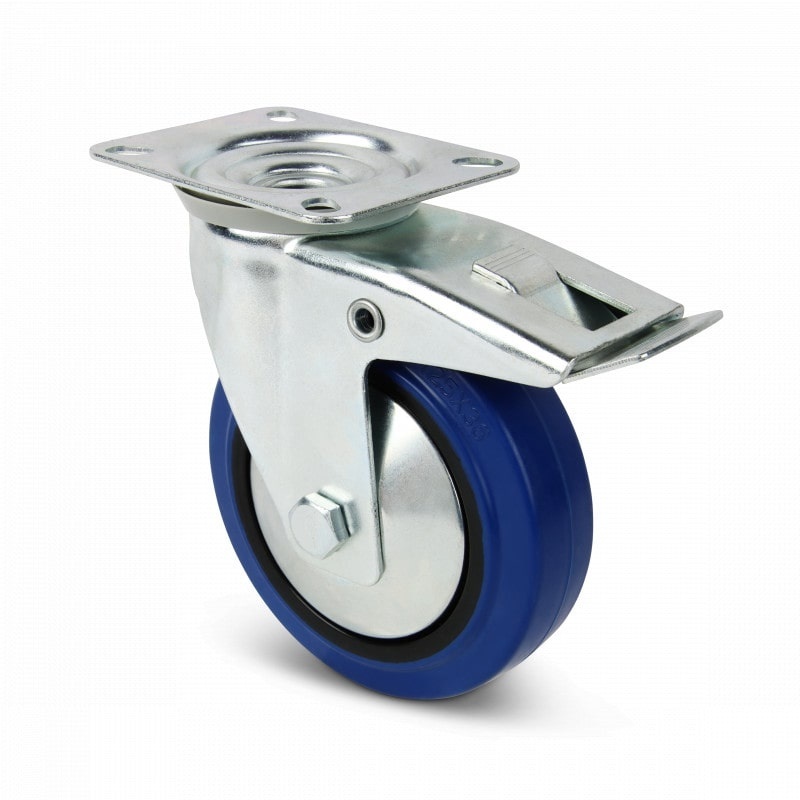

Rubber swivel castor with brake 80 mm - 110 kg
Swivel castor with brake and plate attachment for mounting with 4 bolts.
Pressed steel fork (galvanised) with a double sealed ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Wheels with blue elastic rubber tyres (approx. 65 Shore A), vulcanised onto black plastic rims with roller bearings and galvanised wheel covers.
Read more
Specifications
- Article number: 414.111
- Wheel bearing: Roller bearing / Needle bearing
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 65 shore A
- Bandage: Blue elastic rubber, vulcanized
- Wheel diameter: 80 mm
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm

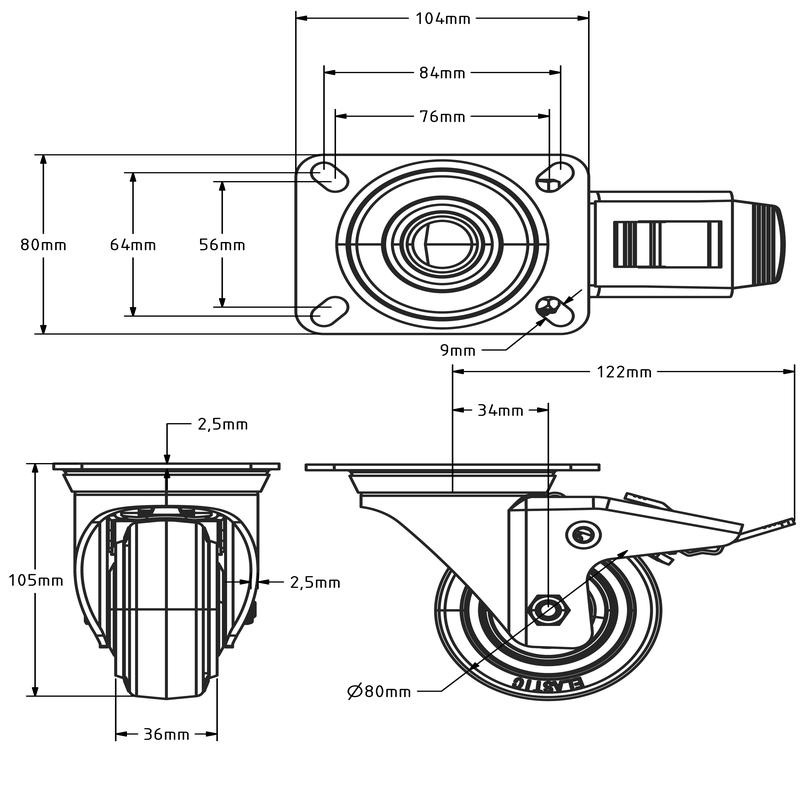

- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 105 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 110 kg
- Wheel width: 36 mm
