Grooved wheel 100 mm with square groove - 425 kg
Show all:
Grooved wheels
Description
Grooved wheel 98 mm steel with square groove - 425 kg (cable disc)
Grooved wheel made of steel (galvanised) with 2 ball bearings.
The grooved wheels have a square groove and an axle.
Read more

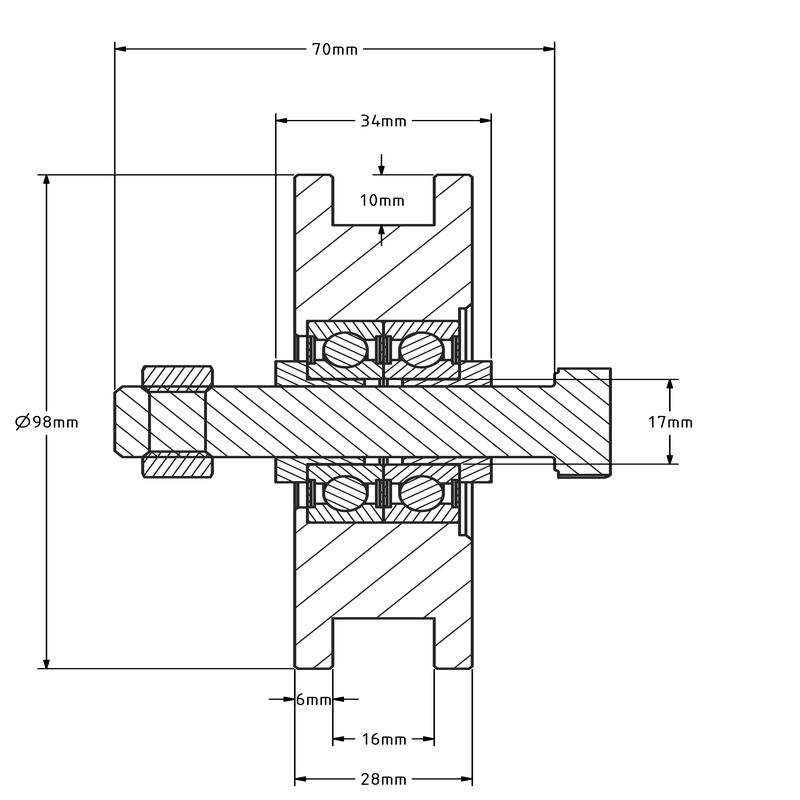

Specifications
- Article number: 179.230
- Wheel diameter: 98 mm
- Shaft diameter: 17 mm
- Ash: M14 x 70
- Hub length: 34 mm
- Groove depth: 10 mm
- Groove width: 16 mm
- Type of wheel: Grooved wheel / Cable pulley
- Groove type: Square groove
- Wheel width: 28 mm
- Carrying capacity: 425 kg
- Material: Steel, galvanized
Show all
Specifications
- Article number: 179.230
- Wheel diameter: 98 mm
- Shaft diameter: 17 mm
- Ash: M14 x 70
- Hub length: 34 mm
- Groove depth: 10 mm
- Groove width: 16 mm
- Type of wheel: Grooved wheel / Cable pulley
- Groove type: Square groove
- Wheel width: 28 mm
- Carrying capacity: 425 kg
- Material: Steel, galvanized
Show all
