Grooved wheel 150 mm with V groove - 1200 kg
Show all:
Grooved wheels
Description

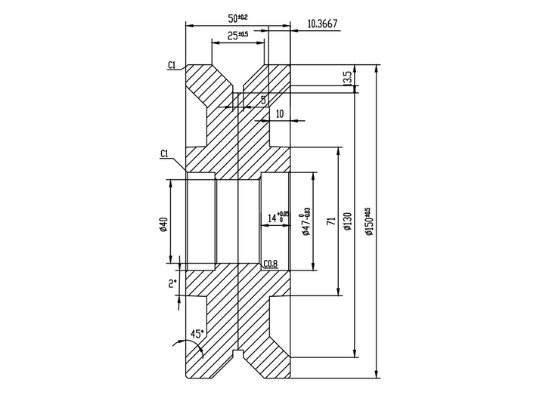

Grooved wheel with bearings, 150 mm steel with V groove - 1200 kg (cable pulley)
Grooved steel wheel ( yellow galvanised) with ball bearings.
The grooved wheels have a V-groove.
Read more
Specifications
- Article number: 177.235
- Wheel width: 50 mm
- Shaft diameter: 20 mm
- Hub length: 50 mm
- Carrying capacity: 1200 kg
- Type of wheel: Grooved wheel / Cable pulley
- Groove type: V groove
- Wheel diameter: 150 mm
- Material: Steel, galvanized
Show all
Specifications
- Article number: 177.235
- Wheel width: 50 mm
- Shaft diameter: 20 mm
- Hub length: 50 mm
- Carrying capacity: 1200 kg
- Type of wheel: Grooved wheel / Cable pulley
- Groove type: V groove
- Wheel diameter: 150 mm
- Material: Steel, galvanized
