Grooved wheel 40 mm with U groove - 70 kg
Show all:
Grooved wheels
Description

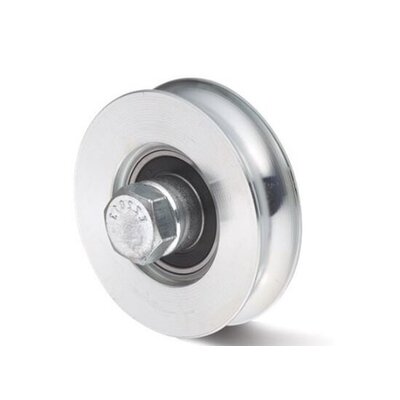

Grooved wheel with bearing, 40 mm steel with round groove - 70 kg (cable disc)
Grooved wheel made of steel ( galvanised) with 1 ball bearing (6000 2RS).
The grooved wheels have a semi-circular groove and an axle.
Read more
Specifications
- Article number: 179.305
- Wheel diameter: 40 mm
- Wheel width: 12 mm
- Shaft diameter: 10 mm
- Ash: M8 x 30
- Hub length: 16 mm
- Groove radius: 4.5 mm
- Groove depth: 4 mm
- Carrying capacity: 70 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Steel, galvanized
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
