Grooved wheel 80 mm with square groove - 200 kg
Show all:
Grooved wheels
Description

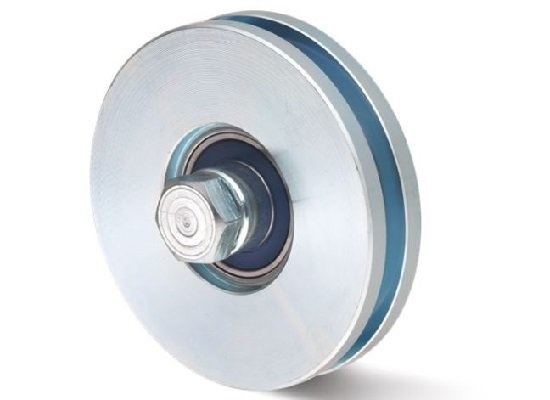

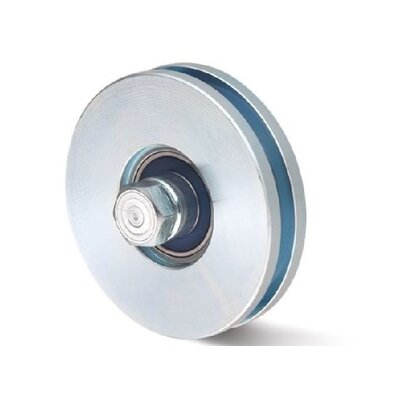

Groove wheel 78 mm steel with square groove - 200 kg (cable pulley)
Steel rollers (galvanised) with 1 ball bearing.
The rollers have a square groove and a shaft.
Read more

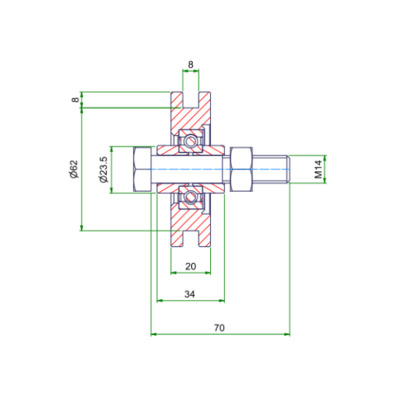

Specifications
- Article number: 179.214
- Wheel diameter: 78 mm
- Shaft diameter: 17 mm
- Ash: M14 x 70
- Hub length: 34 mm
- Groove depth: 8 mm
- Groove width: 8 mm
- Type of wheel: Grooved wheel / Cable pulley
- Groove type: Square groove
- Wheel width: 20 mm
- Carrying capacity: 200 kg
- Material: Steel, galvanized
Show all
Specifications
- Article number: 179.214
- Wheel diameter: 78 mm
- Shaft diameter: 17 mm
- Ash: M14 x 70
- Hub length: 34 mm
- Groove depth: 8 mm
- Groove width: 8 mm
- Type of wheel: Grooved wheel / Cable pulley
- Groove type: Square groove
- Wheel width: 20 mm
- Carrying capacity: 200 kg
- Material: Steel, galvanized
