Guide roller 120 mm - polyurethane - 270 kg
Show all:
Guide rollers
Description

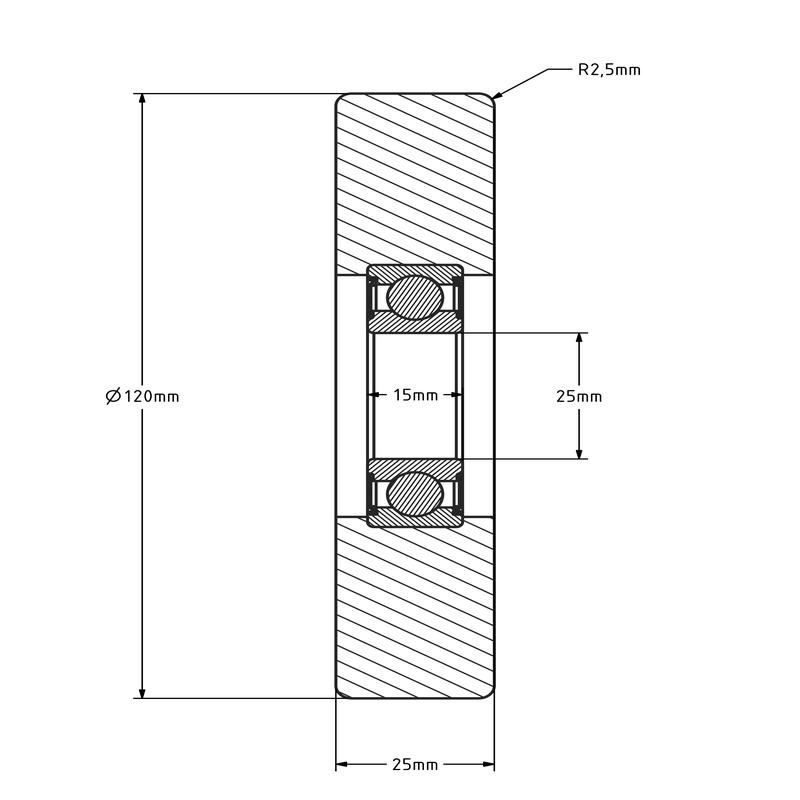

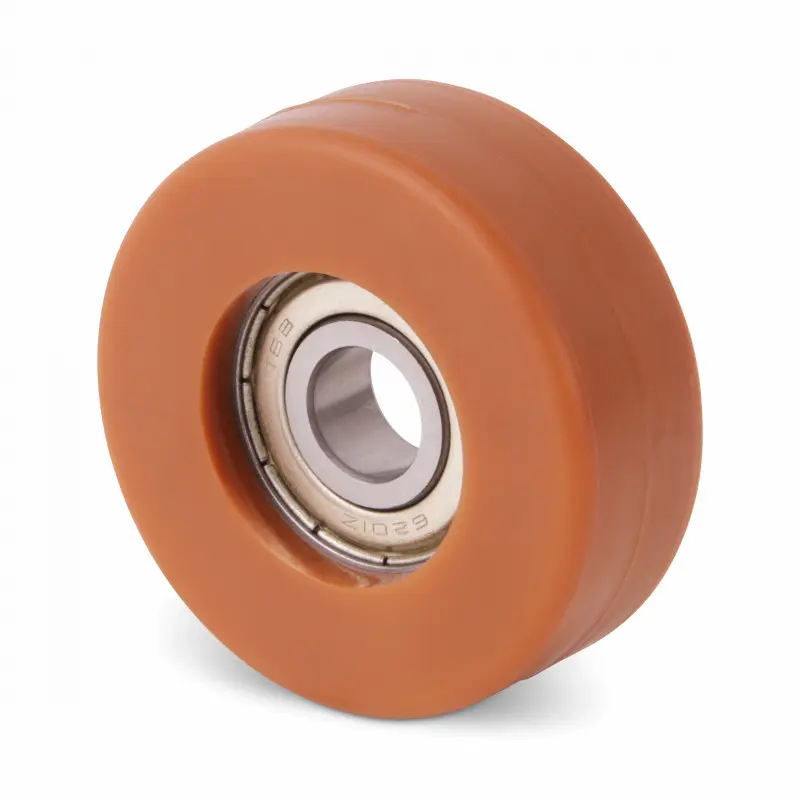

PU guide roller 120x25 mm with ball bearing, 25 mm bore - 270 kg
Guide rollers with an injected polyurethane tyre (approx. 95 Shore A) and 1 ball bearing. (Stainless steel bearings available on request)
The castors are resistant to oil, grease and numerous chemicals.
The tyre is shock-absorbing, wear-resistant and highly resilient.
Read more
Specifications
- Article number: 193.243
- Wheel diameter: 120 mm
- Shaft diameter: 25 mm
- Hub length: 15 mm
- Carrying capacity: 270 kg
- Type of wheel: Guide roller
- Bearing type: 6205 2Z
- Temperature: - 20 / + 80 °C
- Wheel bearing: Double ball bearing, proportional
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Wheel width: 25 mm
Show all
Specifications
- Article number: 193.243
- Wheel diameter: 120 mm
- Shaft diameter: 25 mm
- Hub length: 15 mm
- Carrying capacity: 270 kg
- Type of wheel: Guide roller
- Bearing type: 6205 2Z
- Temperature: - 20 / + 80 °C
- Wheel bearing: Double ball bearing, proportional
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Wheel width: 25 mm
