Guide roller 40 mm - polyamide - 80 kg
Show all:
Guide rollers
Description

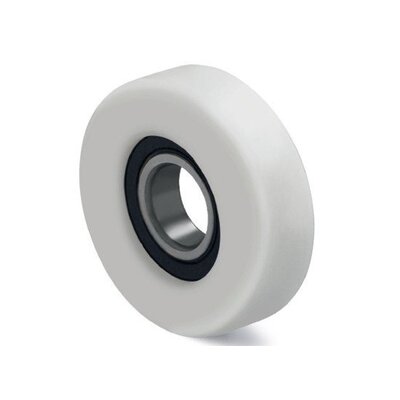

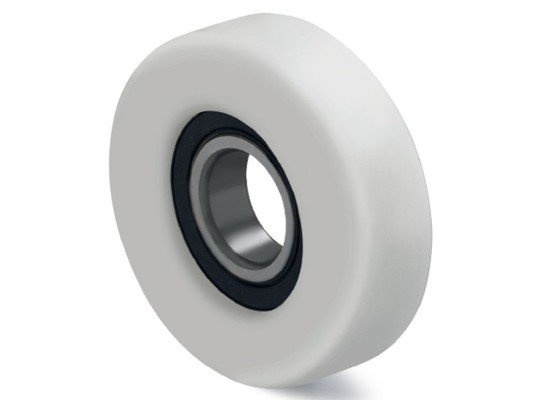

Nylon roller 40x16 mm with ball bearing, 15 mm bore - 80 kg
Polyamide PA6 guide rollers with 1 ball bearing. (Stainless steel bearings available on request)
The rollers are wear-resistant, highly durable and resistant to oil, grease and numerous chemicals.
Read more

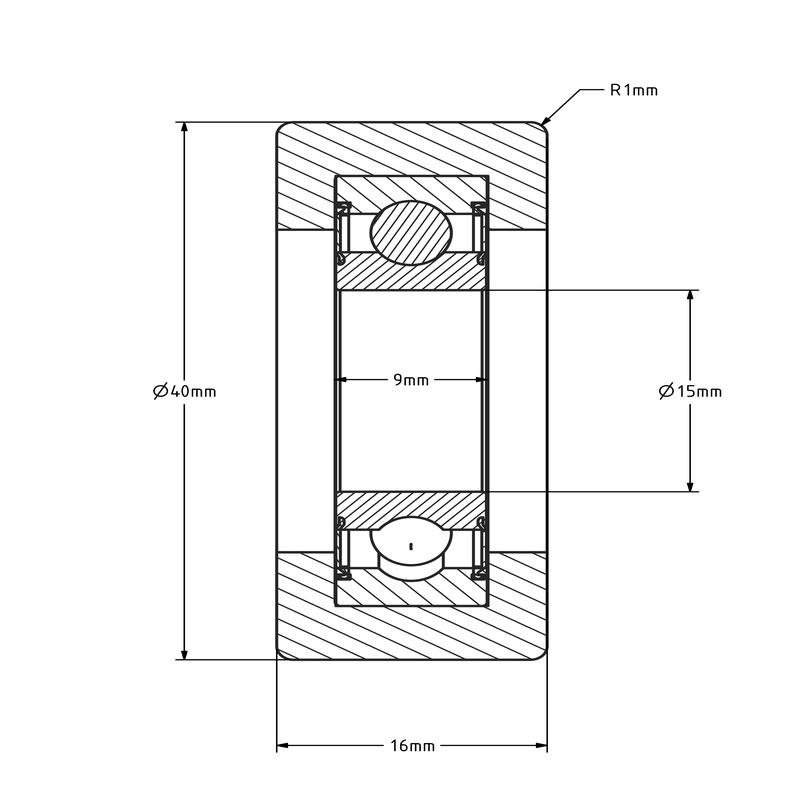

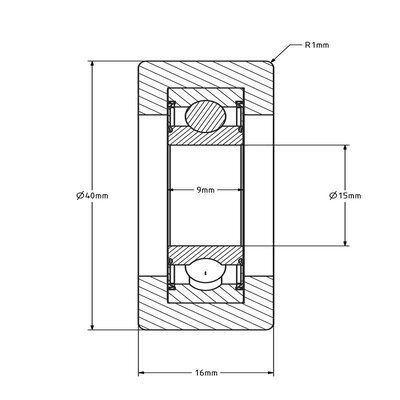

Specifications
- Article number: 194.213
- Wheel diameter: 40 mm
- Shaft diameter: 15 mm
- Hub length: 9 mm
- Carrying capacity: 80 kg
- Type of wheel: Guide roller
- Bearing type: 6002 2RS
- Temperature: - 25 / + 80 °C
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyamide (PA6)
- Tyre hardness: 95 Shore A
- Wheel width: 16 mm
Show all
Specifications
- Article number: 194.213
- Wheel diameter: 40 mm
- Shaft diameter: 15 mm
- Hub length: 9 mm
- Carrying capacity: 80 kg
- Type of wheel: Guide roller
- Bearing type: 6002 2RS
- Temperature: - 25 / + 80 °C
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyamide (PA6)
- Tyre hardness: 95 Shore A
- Wheel width: 16 mm
