BackHomeMaterialsRubber wheelsGuide roller 40x14 mm - polyurethane - 70 kg

Guide roller 40x14 mm - polyurethane - 70 kg

Show all: Guide rollers
Guide roller 40x14 mm - polyurethane - 70 kg
Guide roller 40x14 mm - polyurethane - 70 kg
Guide roller 40x14 mm - polyurethane - 70 kgGuide roller 40x14 mm - polyurethane - 70 kg
In stock
1 day
Required fields:
    -+
    Get a competitive quote within 24 hours
    Get a competitive quote within 24 hours
    Free 3D drawings (STP files)
    Quick delivery times
    OEM & customisation possible
    Description

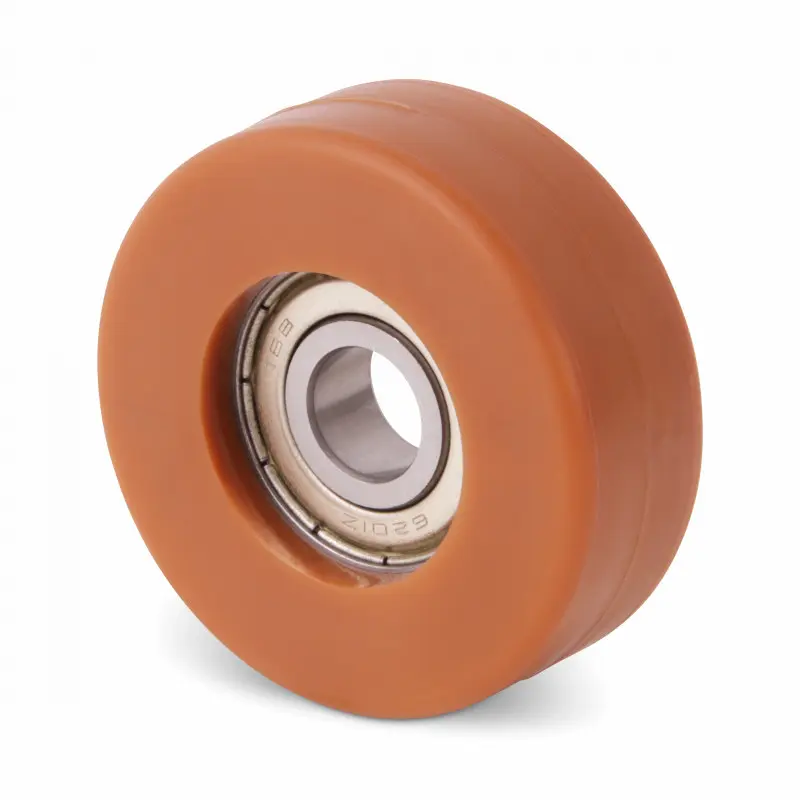

    PU guide roller 40x14 mm with ball bearing, shaft hole 12 mm - 70 kg


    Guide rollers with an injected polyurethane band (approx. 95 Shore) and 1 ball bearing. (Stainless steel bearings available on request)
    The rollers are resistant to oil, grease and numerous chemicals.
    The tyre is shock-absorbing, wear-resistant and highly load-bearing.

    Read more

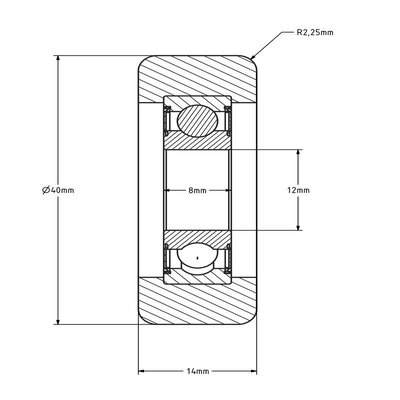

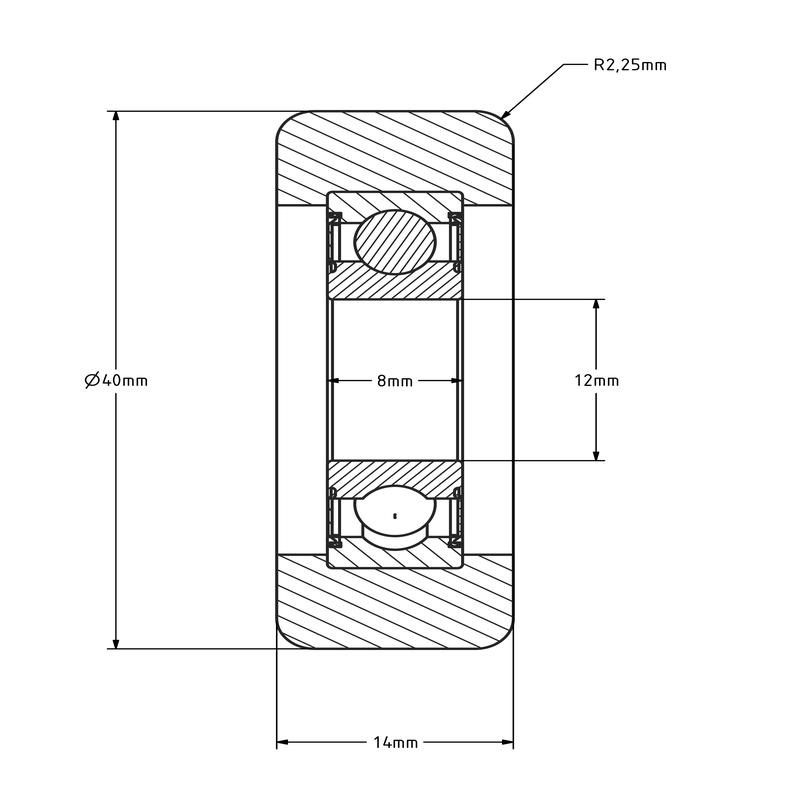

    Specifications
    • Article number: 193.215
    • Wheel diameter: 40 mm
    • Wheel width: 14 mm
    • Shaft diameter: 12 mm
    • Hub length: 8 mm
    • Carrying capacity: 70 kg
    • Type of wheel: Guide roller
    • Wheel bearing: Single ball bearing, centered
    • Bearing type: 6001 2Z
    • Bandage: Polyurethane, injected
    • Tyre hardness: 92 Shore A
    • Temperature: - 20 / + 80 °C
    Show all
    Specifications
    • Article number: 193.215
    • Wheel diameter: 40 mm
    • Wheel width: 14 mm
    • Shaft diameter: 12 mm
    • Hub length: 8 mm
    • Carrying capacity: 70 kg
    • Type of wheel: Guide roller
    • Wheel bearing: Single ball bearing, centered
    • Bearing type: 6001 2Z
    • Bandage: Polyurethane, injected
    • Tyre hardness: 92 Shore A
    • Temperature: - 20 / + 80 °C
    Show all
