Guide roller 50 mm - polyurethane - 110 kg
Show all:
Guide rollers
Description

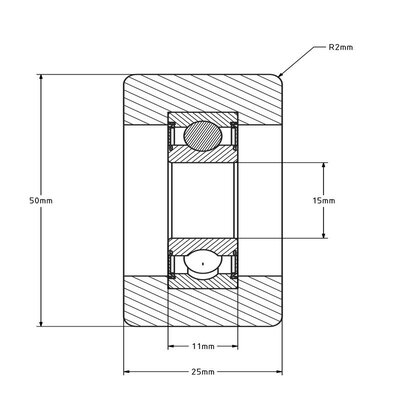

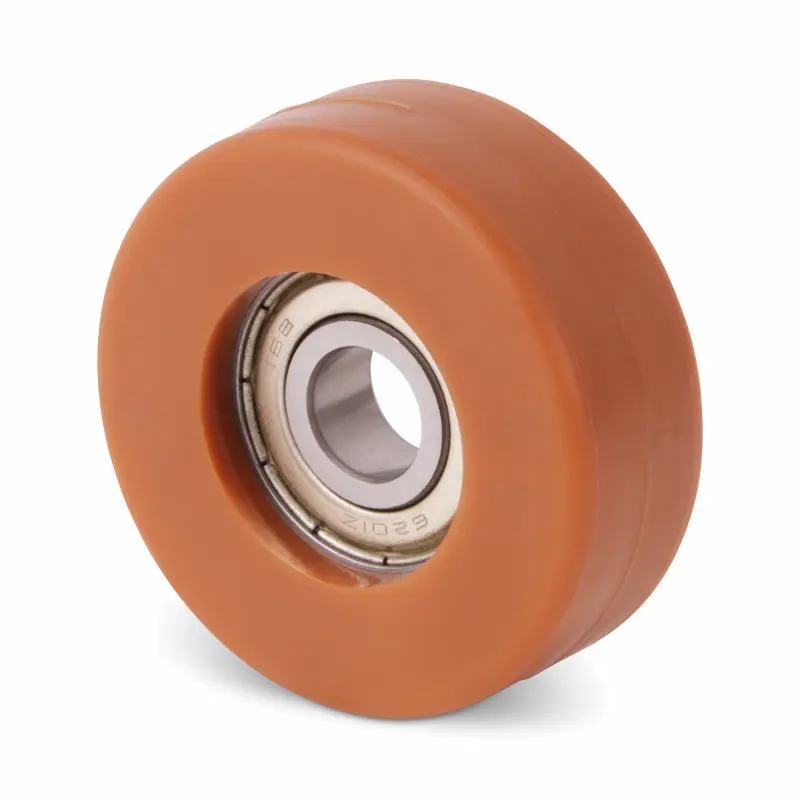

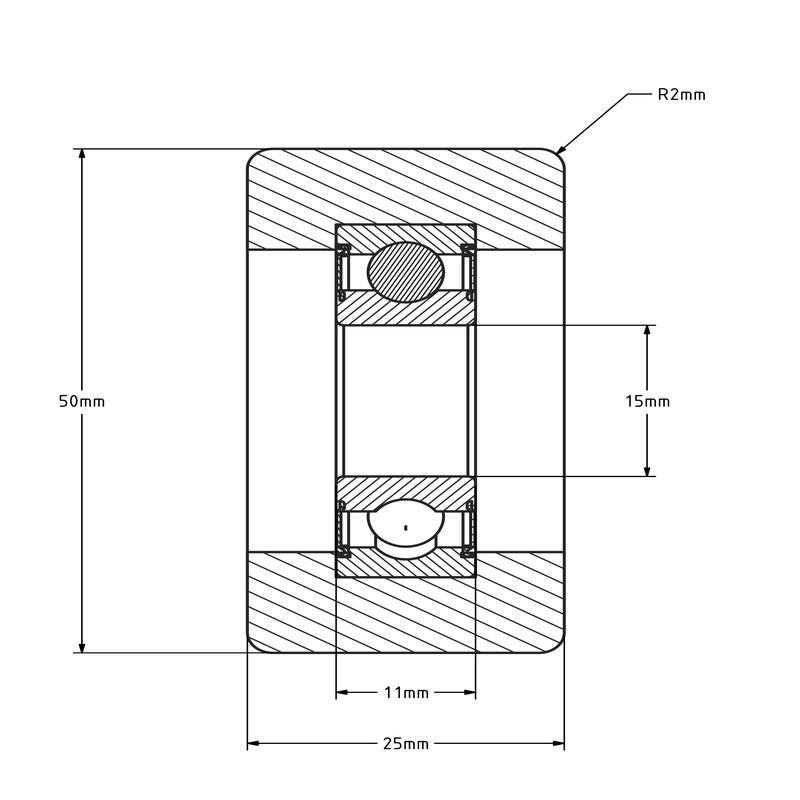

PU guide roller 50x25 mm with ball bearing, 15 mm bore - 110 kg
Guide rollers with an injected polyurethane tyre (approx. 95 Shore) and 1 ball bearing. (Stainless steel bearings available on request)
The castors are resistant to oil, grease and numerous chemicals.
The tyre is shock-absorbing, wear-resistant and highly resilient.
Read more
Specifications
- Article number: 193.228
- Wheel diameter: 50 mm
- Shaft diameter: 15 mm
- Hub length: 11 mm
- Carrying capacity: 110 kg
- Type of wheel: Guide roller
- Bearing type: 6202 2Z
- Temperature: - 20 / + 80 °C
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Wheel width: 25 mm
Show all
Specifications
- Article number: 193.228
- Wheel diameter: 50 mm
- Shaft diameter: 15 mm
- Hub length: 11 mm
- Carrying capacity: 110 kg
- Type of wheel: Guide roller
- Bearing type: 6202 2Z
- Temperature: - 20 / + 80 °C
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyurethane, injected
- Tyre hardness: 95 Shore A
- Wheel width: 25 mm
Show all
