Guide roller 60 mm - polyamide - 350 kg
Show all:
Guide rollers
Description

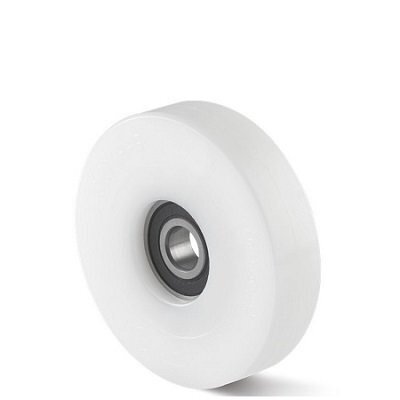

Nylon roller 60x30 mm with ball bearing, 15 mm bore - 350 kg
Polyamide PA6 guide rollers with 1 ball bearing (6302 2RS). (Stainless steel bearings available on request)
The rollers are resistant to oil, grease and numerous chemicals.
The rollers are wear-resistant and can withstand heavy loads.
Read more
Specifications
- Article number: 194.220
- Wheel diameter: 60 mm
- Shaft diameter: 15 mm
- Type of wheel: Guide roller
- Bearing type: 6302 2RS
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyamide (PA6)
- Tyre hardness: 75 Shore D
- Wheel width: 30 mm
- Carrying capacity: 350 kg
- Temperature: - 25 / + 80 °C
- Hub length: 13 mm
Show all
Specifications
- Article number: 194.220
- Wheel diameter: 60 mm
- Shaft diameter: 15 mm
- Type of wheel: Guide roller
- Bearing type: 6302 2RS
- Wheel bearing: Single ball bearing, centered
- Bandage: Polyamide (PA6)
- Tyre hardness: 75 Shore D
- Wheel width: 30 mm
- Carrying capacity: 350 kg
- Temperature: - 25 / + 80 °C
- Hub length: 13 mm
