Heavy-duty nylon fixed castor 75 mm - 600 kg
Show all:
Nylon wheels,Heavy duty wheels
Description

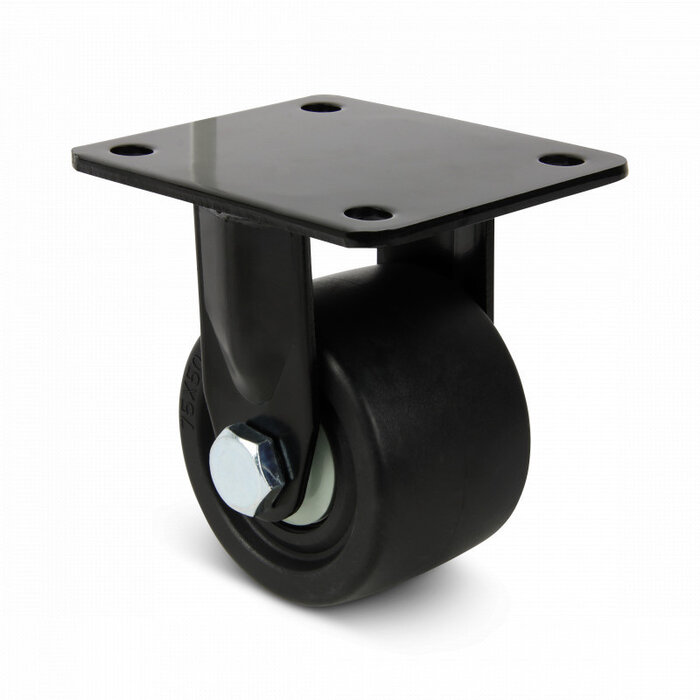

Heavy-duty castor 75 mm with plate - 600 kg
75 mm black swivel caster with plate attachment.
Heavy sheet steel pressed fork (black coated).
Black polyamide (nylon) wheels with ball bearings.
Read more

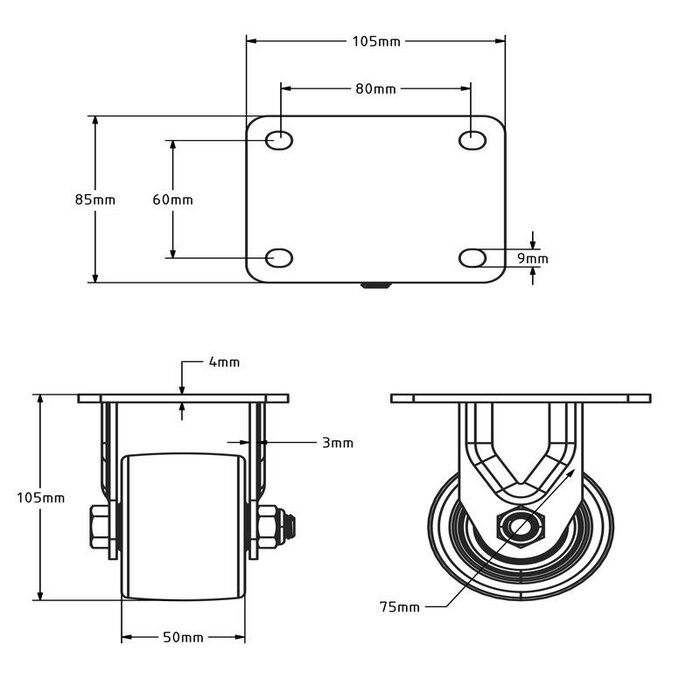

Specifications
- Article number: 510.232
- Wheel width: 50 mm
- Fork: Black coated
- Assembly: Plate mount
- Bolt hole spacing: 80 x 60 - Ø 8 mm
- Building height: 105 mm
- Plate size: 105 x 85 mm
- Temperature: - 20 / + 60 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Carrying capacity: 600 kg
- Wheel diameter: 75 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: 75 Shore D
- Type of wheel: Bucking wheel
Show all
Specifications
- Article number: 510.232
- Wheel width: 50 mm
- Fork: Black coated
- Assembly: Plate mount
- Bolt hole spacing: 80 x 60 - Ø 8 mm
- Building height: 105 mm
- Plate size: 105 x 85 mm
- Temperature: - 20 / + 60 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Carrying capacity: 600 kg
- Wheel diameter: 75 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: 75 Shore D
- Type of wheel: Bucking wheel
Show all
