Heavy-duty nylon swivel castor with brake 125 mm - 700 kg
Show all:
Casters,Nylon wheels
Description

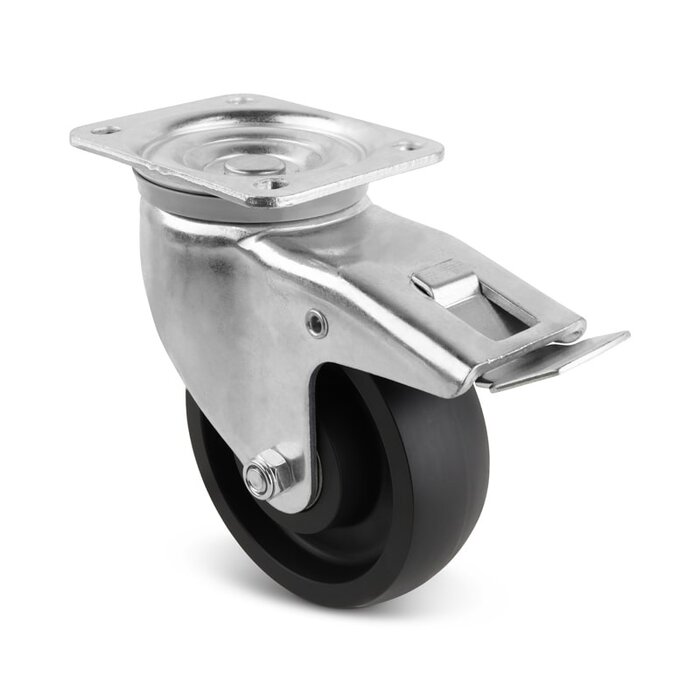

Heavy-duty nylon swivel castor with brake 125 mm - 700 kg
Heavy-duty castors with a plate attachment.
The brake simultaneously blocks the wheel and the swivel ring.
Sheet steel pressed fork (galvanised) with a sealed double ball swivel.
Wheels made of black polyamide PA6 with ball bearings.
Read more
Specifications
- Article number: 457.221
- Wheel bearing: Double ball bearing
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 75 shore D
- Bandage: Polyamide (PA6)
- Wheel diameter: 125 mm
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake

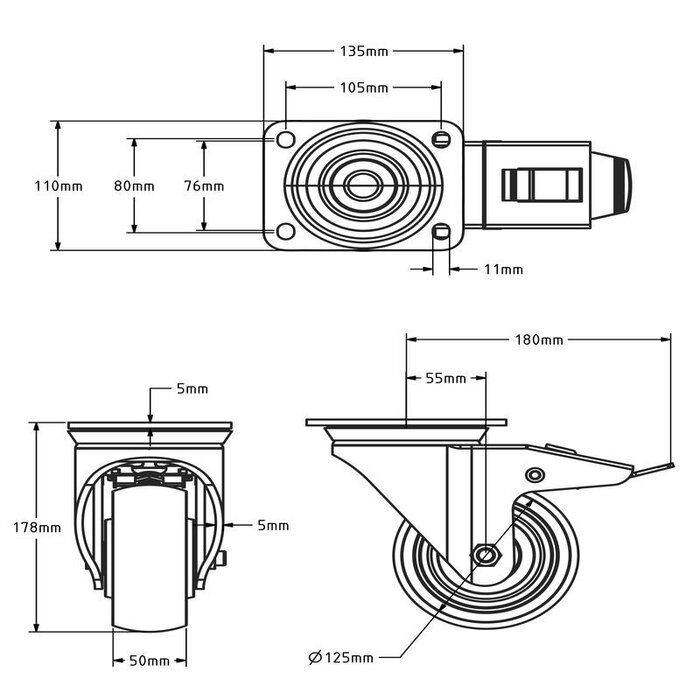

- Gaff rash: 55 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Building height: 178 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 700 kg
- Wheel width: 50 mm
