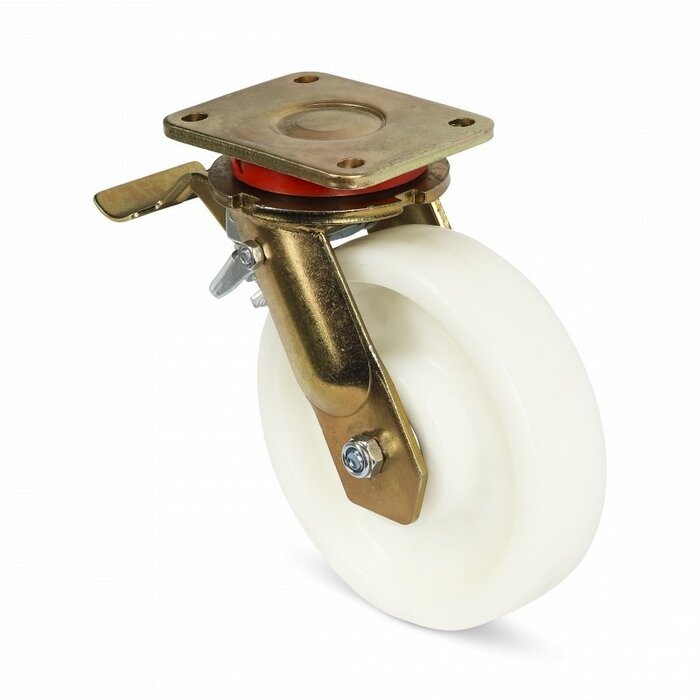

Heavy-duty nylon swivel castor with brake 200 mm - ball bearing - 1300 kg

Heavy-duty nylon swivel castor with brake 200 mm - 1300 kg

The 200 mm swivel castor with brake is characterized by an extremely solid steel welded fork in combination with a robust polyamide wheel. These steel welded swivel castors are mainly used in situations with an increased risk of collisions with forklift trucks or in very demanding circumstances where minimal breakdowns and a long lifespan are essential. The heavy-duty swivel casters with brakes are equipped with a forward brake that simultaneously blocks the swivel and the wheel. This brake ensures that the brake is always in the same direction as the direction of movement of the application.

The steel welded swivel fork consists of an 8 mm mounting plate on which an axial pivot bearing is mounted, in combination with a tapered roller bearing that functions as a turntable. The underside of the turntable is firmly attached to the mounting plate with three screws and securely locked with a spot weld. The turntable is sealed and remains lubricated throughout its service life, but can be re-lubricated if necessary. The welded fork legs provide excellent resistance to lateral shocks. In addition, the swivel forks are yellow passivated, resulting in excellent corrosion resistance.

The precision injection-molded polyamide wheel has no air bubbles or uneven material distribution, giving the wheel a high load capacity combined with excellent impact and shock resistance. The wheels are equipped with double precision ball bearings, giving them low rolling resistance on flat surfaces and maintaining a continuous smooth rolling motion.
