Heavy-duty nylon swivel castor with brake 50 mm - 300 kg
Show all:
Casters,Nylon wheels
Description

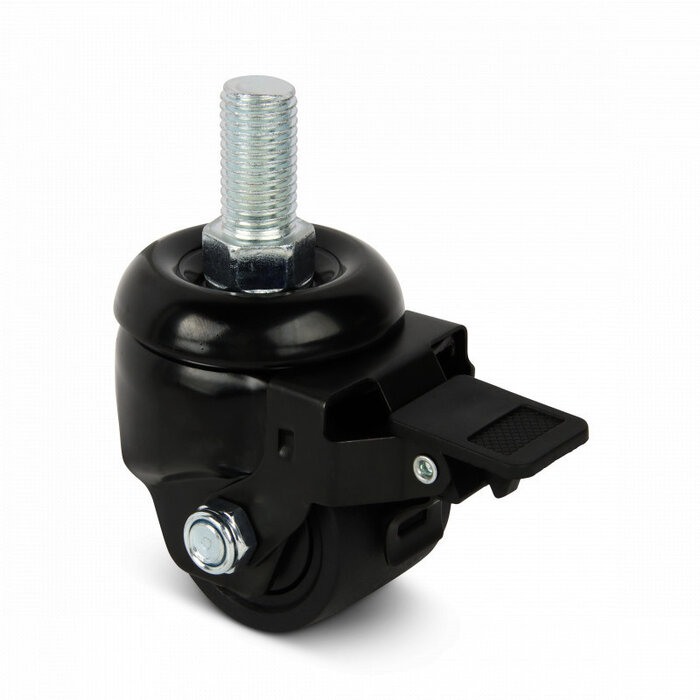

Heavy-duty swivel castor with brake 50 mm and plate - 300 kg
Black 50 mm swivel castor with brake and bolt hole attachment.
Heavy sheet steel pressed fork (black coated) with a double ball swivel.
The brake only blocks the wheel.
Black polyamide (nylon) wheels with ball bearings.
Read more
Specifications
- Article number: 510.911
- Wheel bearing: Double ball bearing, proportional
- Soundproof: 1
- Hardness: 75 Shore D
- Threaded pin size: M16 x 30
- Fork: Black coated
- Assembly: Bolt hole attachment
- Building height: 79 mm
- Temperature: - 20 / + 80 °C
- Bandage: Polyamide (PA6)
- Type of wheel: Swivel castor with brake
- Carrying capacity: 300 kg
- Wheel width: 38 mm
- Wheel diameter: 50 mm
- Suitable for: Flat surface
- Wear-resistant: 5
- Rolling resistance: 5
- Brake: Just blocks the wheel
- Gaff rash: 14 mm
Show all
