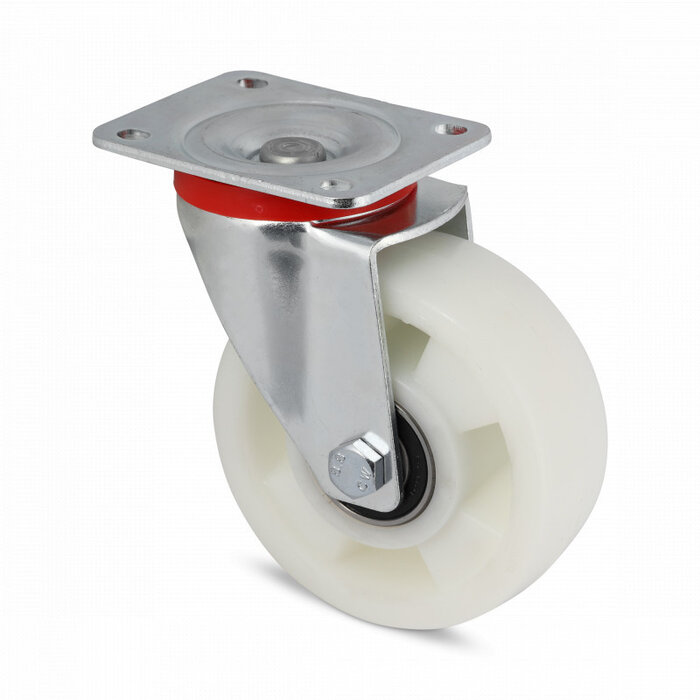

Nylon swivel castor 100 mm - ball bearing - 300 kg
Show all:
Casters,Nylon wheels
Description
100 mm nylon swivel castor with ball bearing and plate, up to 300 kg
Swivel castors with plate attachment.
Reinforced sheet steel pressed fork (galvanised) with a sealed double ball swivel ring.
Wheels made of polyamide (PA 6) with 2 ball bearings.
Read more

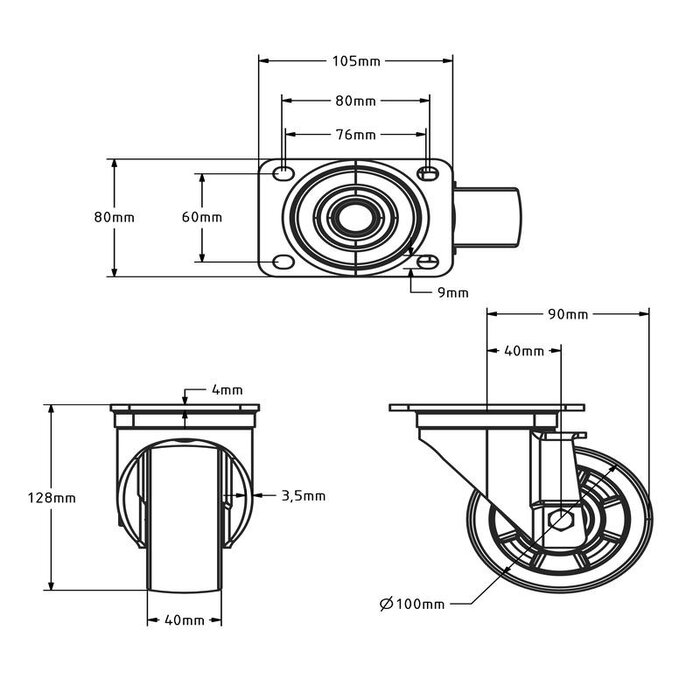

Specifications
- Article number: 455.215
- Wheel width: 40 mm
- Gaff rash: 40 mm
- Fork: Pressed steel, galvanized
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Building height: 128 mm
- Plate size: 105 x 80 mm
- Temperature: - 40 / + 90 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Carrying capacity: 300 kg
- Wheel diameter: 100 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 75 Shore D
- Assembly: Plate mount
- Type of wheel: Caster
Show all
Specifications
- Article number: 455.215
- Wheel width: 40 mm
- Gaff rash: 40 mm
- Fork: Pressed steel, galvanized
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Building height: 128 mm
- Plate size: 105 x 80 mm
- Temperature: - 40 / + 90 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Carrying capacity: 300 kg
- Wheel diameter: 100 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 75 Shore D
- Assembly: Plate mount
- Type of wheel: Caster
Show all
