Nylon swivel castor 100 mm - ball bearing - 600 kg
Show all:
Casters,Nylon wheels
Description

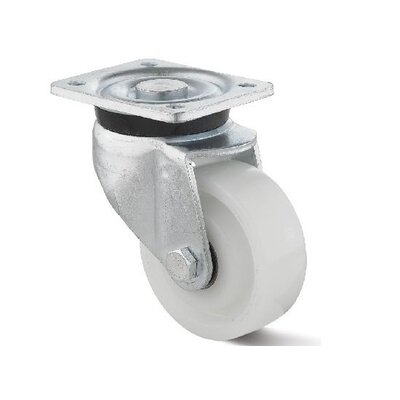

100 mm nylon swivel castor with ball bearing and plate up to 600 kg
Heavy-duty castors with plate attachment.
Fork of 5 mm thick pressed steel (galvanised) with a sealed double ball swivel.
Polyamide (PA 6) wheels with ball bearings.
Read more
Specifications
- Article number: 456.215
- Wheel width: 38 mm
- Gaff rash: 45 mm
- Fork: Pressed steel, galvanized
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Building height: 140 mm
- Plate size: 105 x 86 mm
- Temperature: - 40 / + 90 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Carrying capacity: 600 kg
- Wheel diameter: 100 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 75 Shore D
- Assembly: Plate mount
- Type of wheel: Caster
Show all
Specifications
- Article number: 456.215
- Wheel width: 38 mm
- Gaff rash: 45 mm
- Fork: Pressed steel, galvanized
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Building height: 140 mm
- Plate size: 105 x 86 mm
- Temperature: - 40 / + 90 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Carrying capacity: 600 kg
- Wheel diameter: 100 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 75 Shore D
- Assembly: Plate mount
- Type of wheel: Caster
Show all
