Nylon swivel castor 100 mm - roller bearing - 200 kg
Show all:
Casters,Nylon wheels
Description

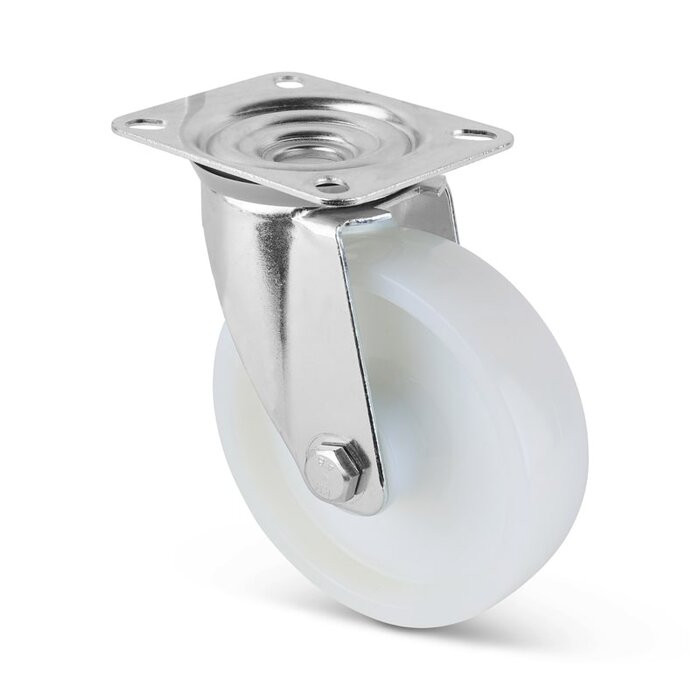

Nylon swivel castor 100 mm with roller bearing and plate - 200 kg
Swivel castors with plate attachment.
Pressed steel fork (galvanised) with a sealed double ball swivel.
Wheels made of polyamide PA6 with roller bearings.
Read more
Specifications
- Article number: 421.115
- Tyre hardness: approx. 75 shore D
- Wheel width: 32 mm
- Wheel diameter: 100 mm
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Carrying capacity: 200 kg
- Bandage: Polyamide (PA6)
- Wheel bearing: Roller bearing
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Caster

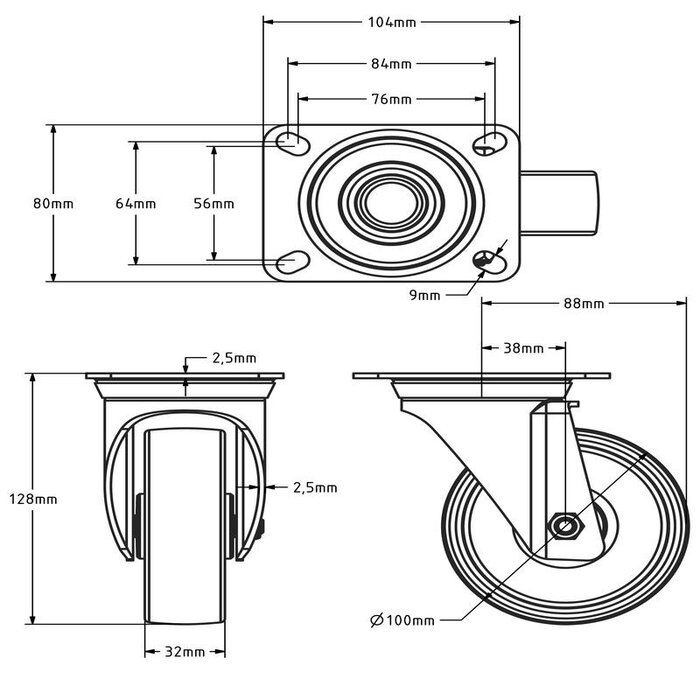

- Gaff rash: 38 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 128 mm
- Temperature: - 40 / + 90 °C
