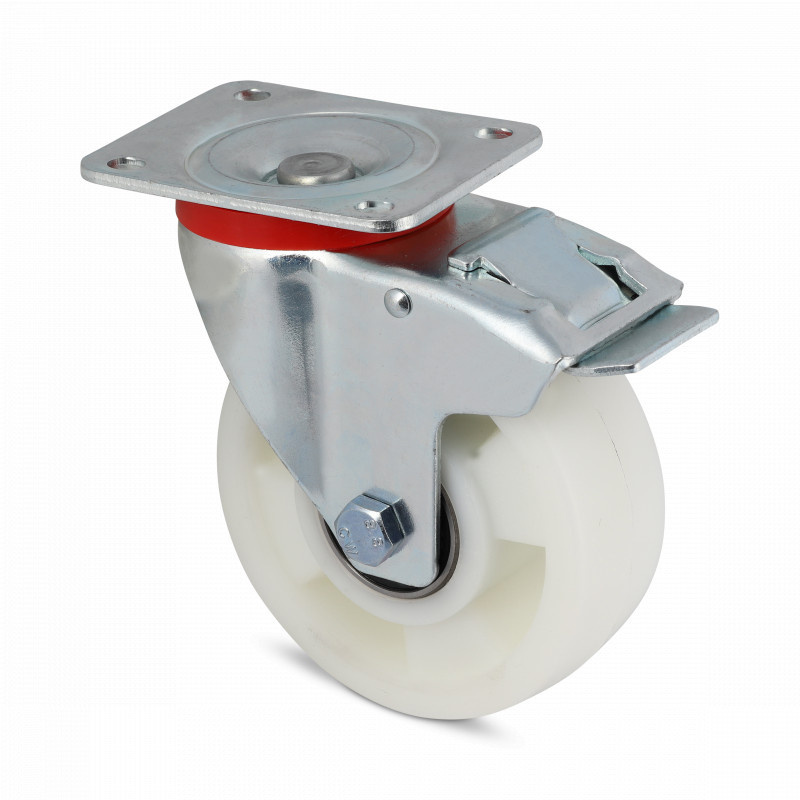

Nylon swivel castor with brake 100 mm - ball bearing - 300 kg
Show all:
Casters,Nylon wheels
Description
100 mm nylon swivel castor with ball bearing and plate brake, up to 300 kg
Swivel castors with brake and plate attachment.
The brake simultaneously blocks the swivel and the wheel.
Reinforced pressed steel fork (galvanised) with a sealed double ball swivel.
Polyamide (PA 6) wheels with 2 ball bearings.
Read more

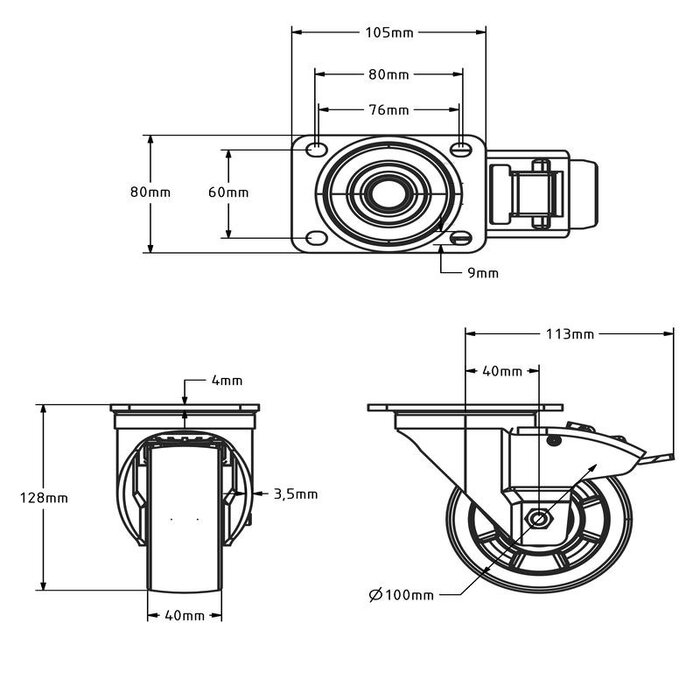

Specifications
- Article number: 455.216
- Wheel diameter: 100 mm
- Wheel width: 40 mm
- Building height: 128 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 300 kg
- Gaff rash: 40 mm
- Type of wheel: Swivel castor with brake
- Brake: Locks wheel and swivel simultaneously
- Assembly: Plate mount
- Fork: Pressed steel, galvanized
- Wheel bearing: Double ball bearing, proportional
- Bandage: Polyamide (PA6)
- Tyre hardness: approx. 75 Shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
Show all
Specifications
- Article number: 455.216
- Wheel diameter: 100 mm
- Wheel width: 40 mm
- Building height: 128 mm
- Plate size: 105 x 80 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Carrying capacity: 300 kg
- Gaff rash: 40 mm
- Type of wheel: Swivel castor with brake
- Brake: Locks wheel and swivel simultaneously
- Assembly: Plate mount
- Fork: Pressed steel, galvanized
- Wheel bearing: Double ball bearing, proportional
- Bandage: Polyamide (PA6)
- Tyre hardness: approx. 75 Shore D
- Rolling resistance: 5
- Wear-resistant: 5
- Soundproof: 1
- Temperature: - 40 / + 90 °C
- Suitable for: Flat surface
Show all
