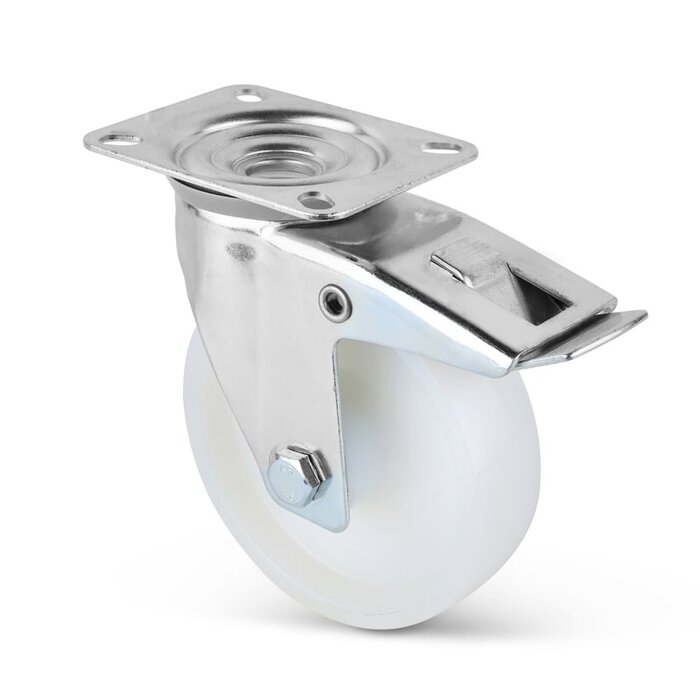

Nylon swivel castor with brake 160 mm - roller bearing - 300 kg
Show all:
Casters,Nylon wheels
Description
Nylon swivel castor 160 mm with brake, roller bearing and plate - 300 kg
Swivel castors with plate attachment.
Pressed steel fork (galvanised) with a sealed double ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Polyamide (PA 6) wheels with roller bearings.
Read more
Specifications
- Article number: 421.141
- Wheel bearing: Roller bearing
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: approx. 75 shore D
- Bandage: Polyamide (PA6)
- Wheel diameter: 160 mm
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 55 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Building height: 195 mm
- Temperature: - 40 / + 90 °C
- Carrying capacity: 300 kg
- Wheel width: 45 mm
