Nylon swivel castor with brake 75 mm - 600 kg
Show all:
Casters,Nylon wheels
Description

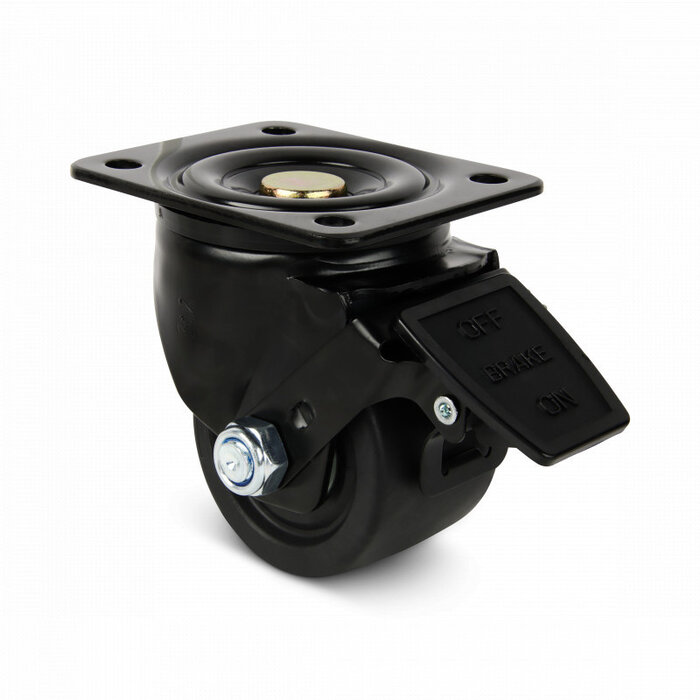

Heavy-duty swivel castor 75 mm with brake and plate - 600 kg
Black 75 mm castor wheels with brake and plate attachment.
Heavy sheet steel pressed fork (black coated) with a double ball swivel.
The brake only blocks the wheel.
Black polyamide (nylon) wheels with ball bearings.
Read more

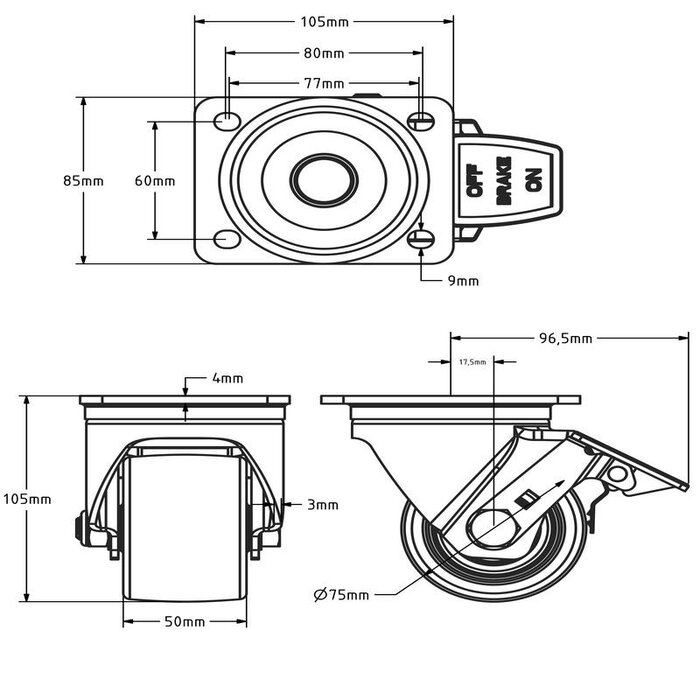

Specifications
- Article number: 510.231
- Wheel diameter: 75 mm
- Fork: Black coated
- Assembly: Plate mount
- Bolt hole spacing: 80 x 60 - Ø 8 mm
- Building height: 105 mm
- Plate size: 105 x 85 mm
- Temperature: - 20 / + 60 °C
- Bandage: Polyamide (PA6)
- Wheel bearing: Double ball bearing, proportional
- Wheel width: 50 mm
- Carrying capacity: 600 kg
- Suitable for: Flat surface
- Soundproof: 1
- Wear-resistant: 5
- Rolling resistance: 5
- Tyre hardness: 75 Shore D
- Brake: Just blocks the wheel
- Type of wheel: Swivel castor with brake
- Gaff rash: 17.5 mm
