Plastic pulley 100 mm with U groove - 270 kg
Show all:
Cable pulleys
Description
html

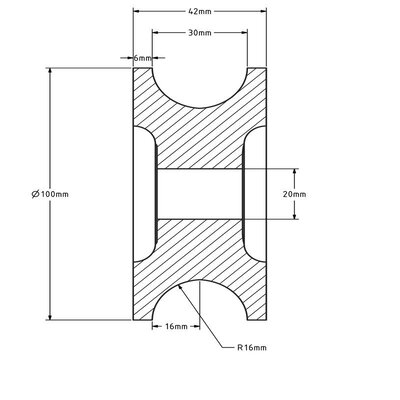

Plastic pulley 100 mm with groove - 270 kg (grooved wheel)
Polyamide (PA6) pulley with a plain bearing.
The pulleys have a round groove.
Read more
Specifications
- Article number: 178.032
- Wheel diameter: 100 mm
- Wheel width: 42 mm
- Shaft diameter: 20 mm
- Hub length: 27 mm
- Hub diameter: 50 mm
- Groove radius: 14 mm
- Groove depth: 16 mm
- Groove width: 28 mm
- Carrying capacity: 270 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Polyamide (plastic)
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
Specifications
- Article number: 178.032
- Wheel diameter: 100 mm
- Wheel width: 42 mm
- Shaft diameter: 20 mm
- Hub length: 27 mm
- Hub diameter: 50 mm
- Groove radius: 14 mm
- Groove depth: 16 mm
- Groove width: 28 mm
- Carrying capacity: 270 kg
- Type of wheel: Grooved wheel / Cable pulley
- Material: Polyamide (plastic)
- Groove type: Round groove - U
- Temperature: - 20 / + 80 °C
Show all
