Polyurethane drive wheel 200x80 mm - Bore 40 mm H9 keyway - 1600 kg
Show all:
Drive wheels
Description

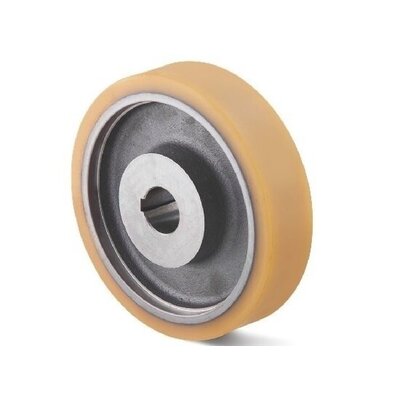

Drive wheel Ø 200 x 80 mm with a Vulkollan tyre.
Drive wheels with a polyurethane tyre (approx. 92 Shore A), vulcanised onto a cast iron rim.
These wheels have an H9 bore and a keyway.
Read more
Specifications
- Article number: 189.550
- Wheel diameter: 200 mm
- Wheel width: 80 mm
- Shaft diameter: 40 mm
- Carrying capacity: 1600 kg
- Type of wheel: Drive Wheel
- Rim: Cast Iron
- Bandage: Polyurethane, vulcanized
- Passing: H9
- Hardness: 91 Shore A
- Hub length: 80 mm
- Keyway:
- DIN: 6885
Show all
Specifications
- Article number: 189.550
- Wheel diameter: 200 mm
- Wheel width: 80 mm
- Shaft diameter: 40 mm
- Carrying capacity: 1600 kg
- Type of wheel: Drive Wheel
- Rim: Cast Iron
- Bandage: Polyurethane, vulcanized
- Passing: H9
- Hardness: 91 Shore A
- Hub length: 80 mm
- Keyway:
- DIN: 6885
Show all
