Polyurethane wheel 35 mm - ball bearing axle hole 8 mm - 100 kg
Show all:
Industrial wheels,Wheels
Description

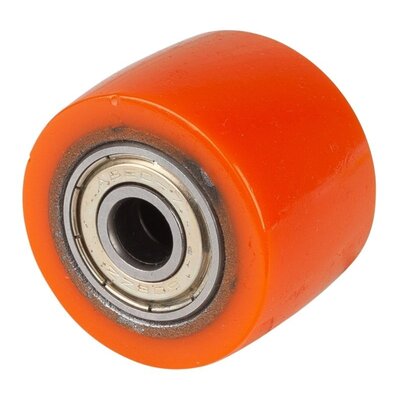

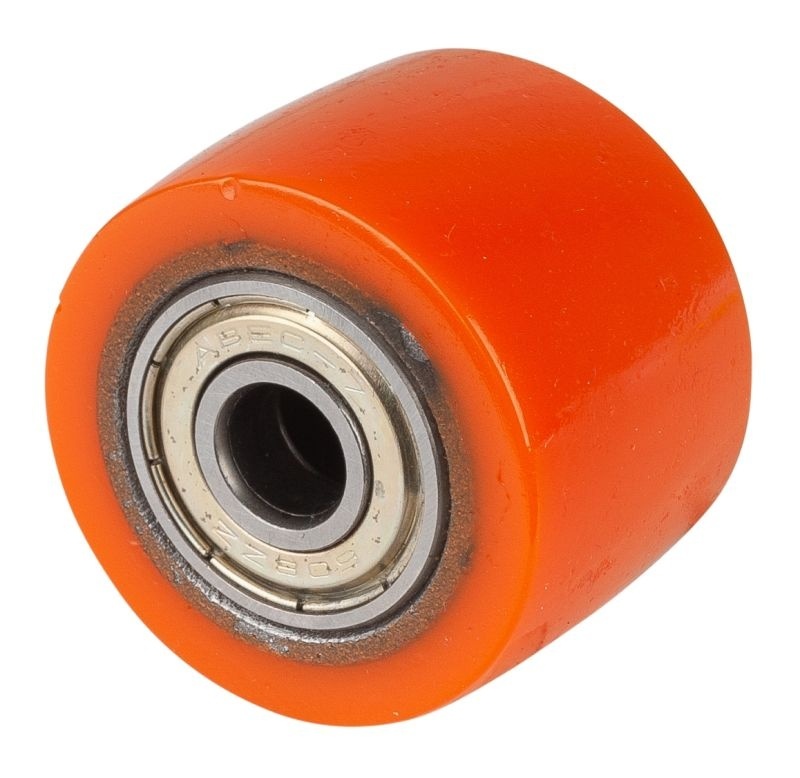

Polyurethane wheel 35 mm with ball bearing, 8 mm axle hole - 100 kg
Polyurethane wheel 35 mm with ball bearing, axle hole 8 mm - 100 kg. The wheel has a hub length of 25 mm and can easily be mounted with an 8 mm axle. The polyurethane tyre is moulded onto a cast iron rim. The wheel bearing has a centred ball bearing, which keeps rolling resistance low. The dynamic load capacity is 100 kg and it is temperature resistant from -20 to +80°. Polyurethane (PU) is known for its low rolling resistance, making it a popular choice for various applications, such as transport carts, furniture and industrial machinery. The wheel has a hardness of approx. 92 A on the Shore scale.
Read more
Specifications
- Article number: 330.010
- Wheel diameter: 35 mm
- Wheel width: 25 mm
- Hub length: 25 mm
- Temperature: - 20 / + 80 °C
- Type of wheel: Loose wheel
- Rim: Steel
- Wheel bearing: Ball bearing
- Bandage: Polyurethane
- Tyre hardness: approx. 92 shore A
- Rolling resistance: 4
- Wear-resistant: 3
- Soundproof: 3
- Suitable for: Flat and rough surface
- Shaft diameter: 8 mm
- Carrying capacity: 100 kg
Show all
Specifications
- Article number: 330.010
- Wheel diameter: 35 mm
- Wheel width: 25 mm
- Hub length: 25 mm
- Temperature: - 20 / + 80 °C
- Type of wheel: Loose wheel
- Rim: Steel
- Wheel bearing: Ball bearing
- Bandage: Polyurethane
- Tyre hardness: approx. 92 shore A
- Rolling resistance: 4
- Wear-resistant: 3
- Soundproof: 3
- Suitable for: Flat and rough surface
- Shaft diameter: 8 mm
- Carrying capacity: 100 kg
Show all
