PU swivel castor 160 mm - 300 kg
Show all:
Casters,Polyurethane wheels
Description
PU swivel castor 160 mm with plate attachment - 300 kg
Swivel castors with plate attachment.
Pressed steel fork (galvanised) with a sealed double ball bearing swivel.
Wheels with red polyurethane tyres (approx. 95 Shore A), injected onto white polyamide rims with roller bearings.
Read more
Specifications
- Article number: 430.135
- Tyre hardness: approx. 95 shore A
- Wheel width: 45 mm
- Wheel diameter: 160 mm
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 4
- Rolling resistance: 4
- Carrying capacity: 300 kg
- Bandage: Polyurethane, injected
- Wheel bearing: Roller bearing
- Rim: Polyamide (PA6)
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Caster
- Gaff rash: 55 mm

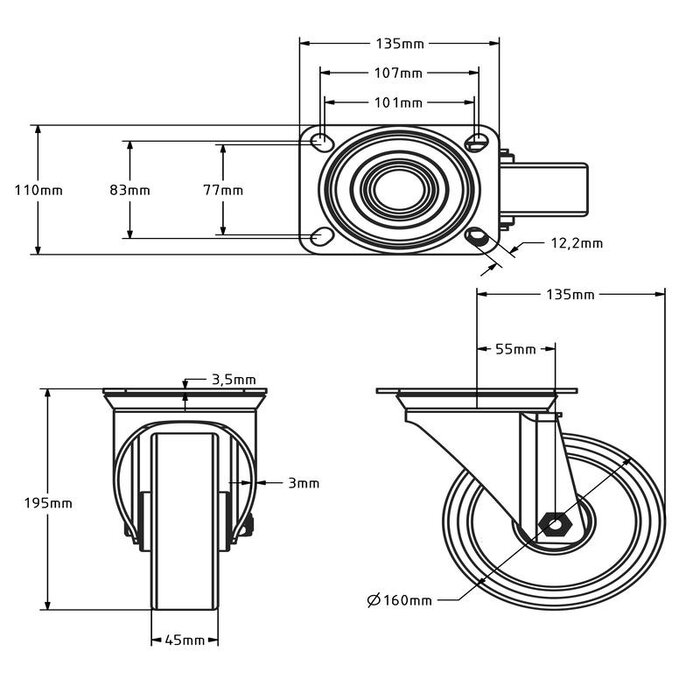

- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Building height: 195 mm
- Temperature: - 20 / + 80 °C
