PU swivel castor with brake 125 mm - 200 kg
Show all:
Casters,Polyurethane wheels
Description

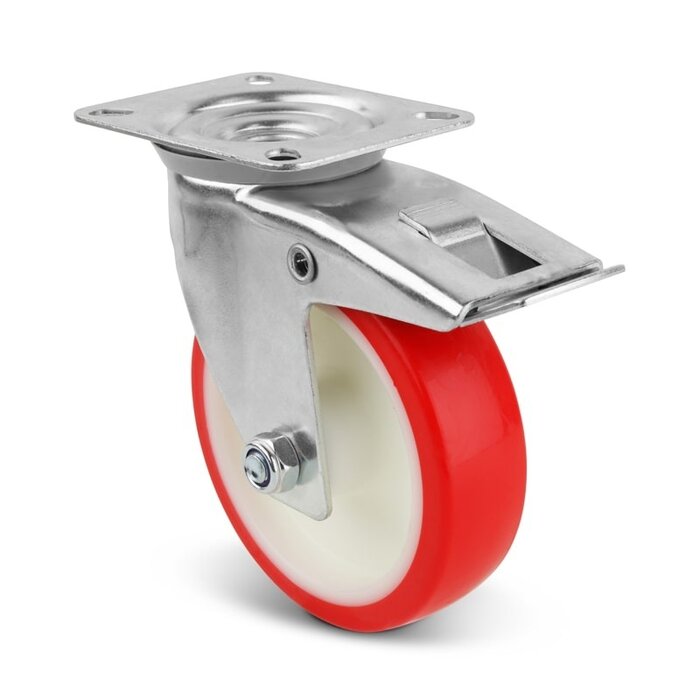

PU swivel castor 125 mm with brake and roller bearing and plate - 200 kg
Swivel castors with plate attachment.
The brake simultaneously blocks the turntable and the wheel.
Pressed steel fork (galvanised ) with a sealed double ball swivel.
Wheels with a red polyurethane tyre (approx. 95 Shore A), injected onto a white polyamide rim with roller bearing.
Read more

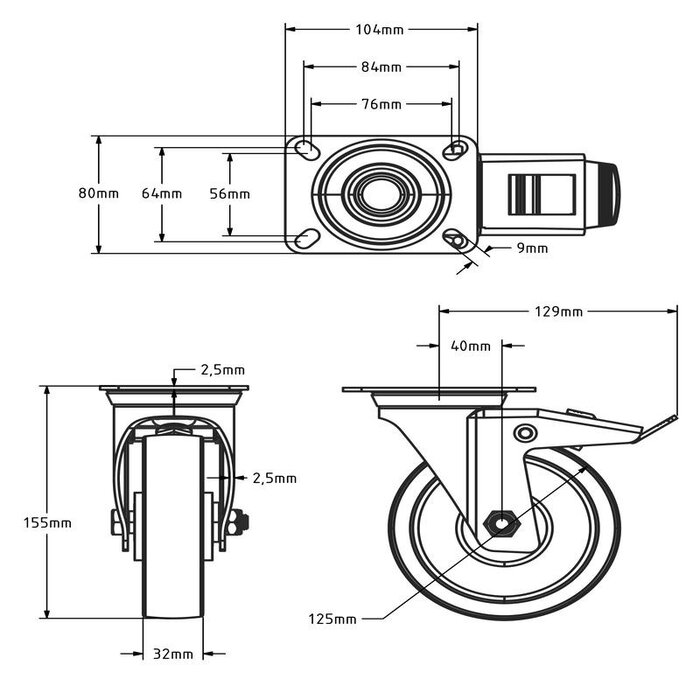

Specifications
- Article number: 430.121
- Tyre hardness: approx. 95 shore A
- Wheel width: 32 mm
- Wheel diameter: 125 mm
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 4
- Rolling resistance: 4
- Carrying capacity: 200 kg
- Bandage: Polyurethane, injected
- Wheel bearing: Roller bearing
- Rim: Polyamide (PA6)
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 40 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 155 mm
- Temperature: - 20 / + 80 °C
Show all
Specifications
- Article number: 430.121
- Tyre hardness: approx. 95 shore A
- Wheel width: 32 mm
- Wheel diameter: 125 mm
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 4
- Rolling resistance: 4
- Carrying capacity: 200 kg
- Bandage: Polyurethane, injected
- Wheel bearing: Roller bearing
- Rim: Polyamide (PA6)
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 40 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 155 mm
- Temperature: - 20 / + 80 °C
