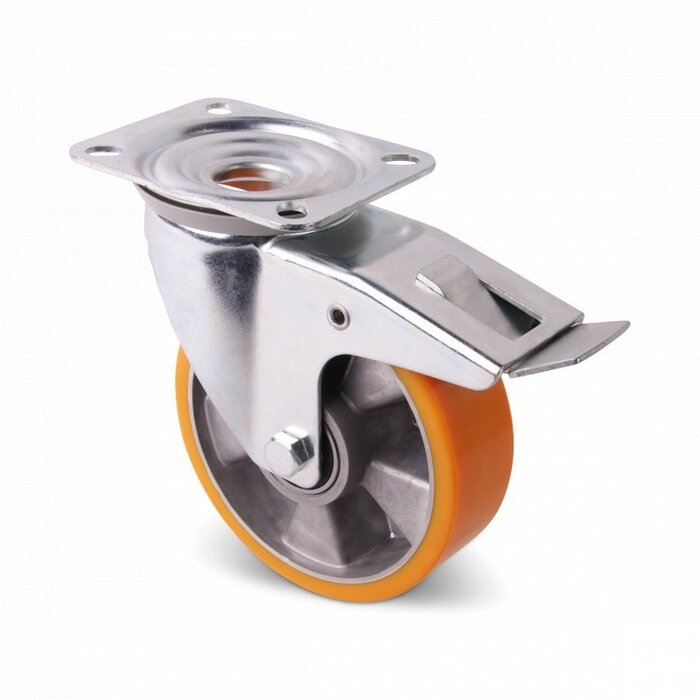

PU swivel castor with brake 200 mm - ball bearing - 400 kg
Show all:
Casters,Polyurethane wheels
Description
PU swivel castor with brake 200 mm with plate - 400 kg
Swivel castors with brake and plate attachment.
The brake simultaneously blocks the swivel and the wheel.
Pressed steel fork (galvanised ) with a sealed double ball swivel.
Wheels with a polyurethane tyre (92 Shore), vulcanised on an aluminium rim with ball bearings.
Discount for orders of 16 or more, see scaled prices or contact us for a quote.
Price available on request for orders of 32 or more.
Read more

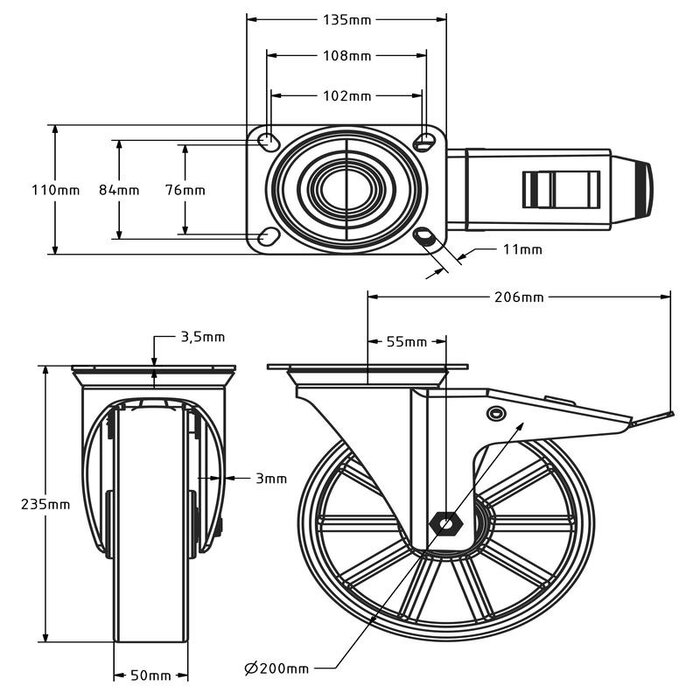

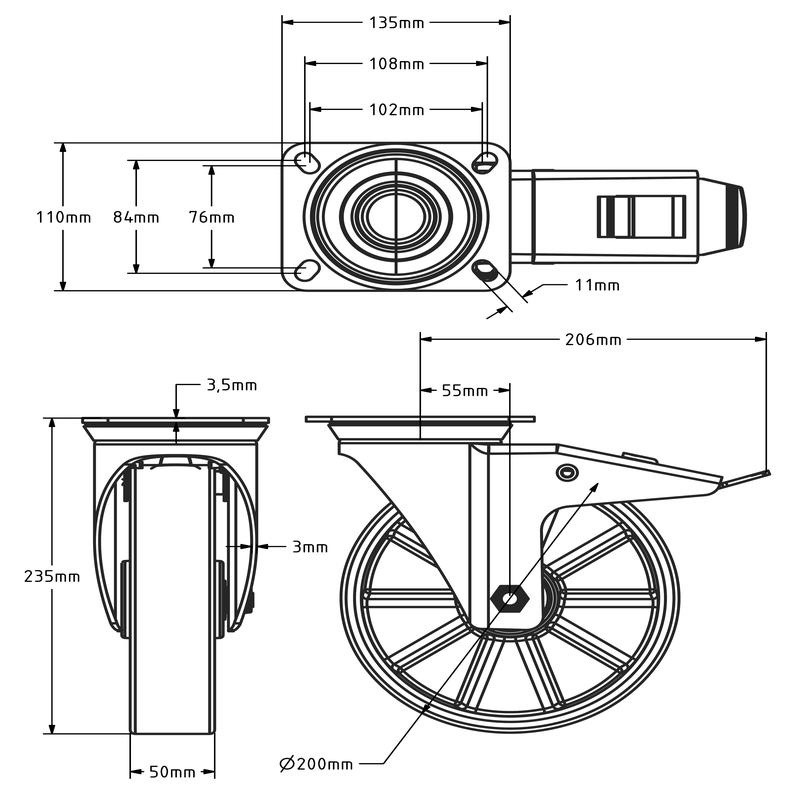

Specifications
- Article number: 440.241
- Wheel bearing: Double ball bearing
- Suitable for: Flat and rough surface
- Soundproof: 3.5
- Wear-resistant: 4.5
- Rolling resistance: 4
- Tyre hardness: approx. 92 shore A
- Bandage: Polyurethane, vulcanized
- Wheel diameter: 200 mm
- Rim: Aluminum
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 55 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Building height: 235 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 400 kg
- Wheel width: 50 mm
