PU swivel castor with brake 200 mm - roller bearing - 400 kg
Show all:
Casters,Polyurethane wheels
Description

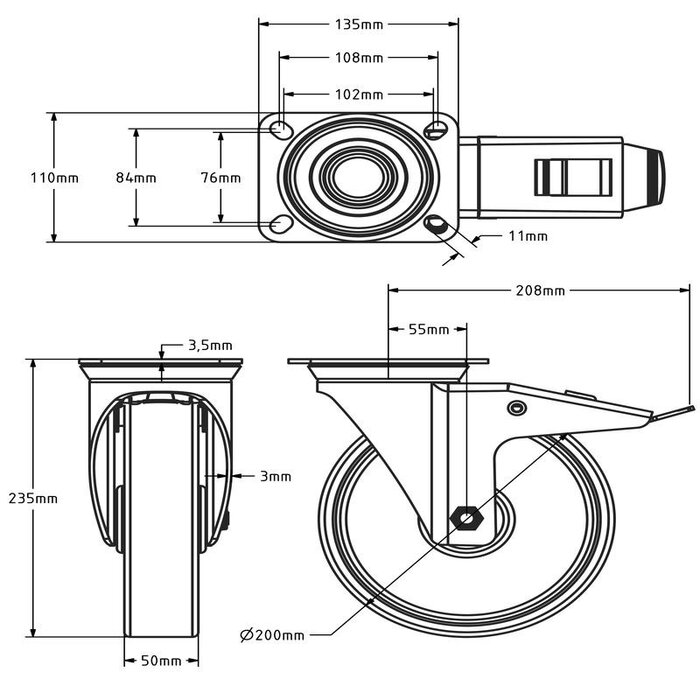

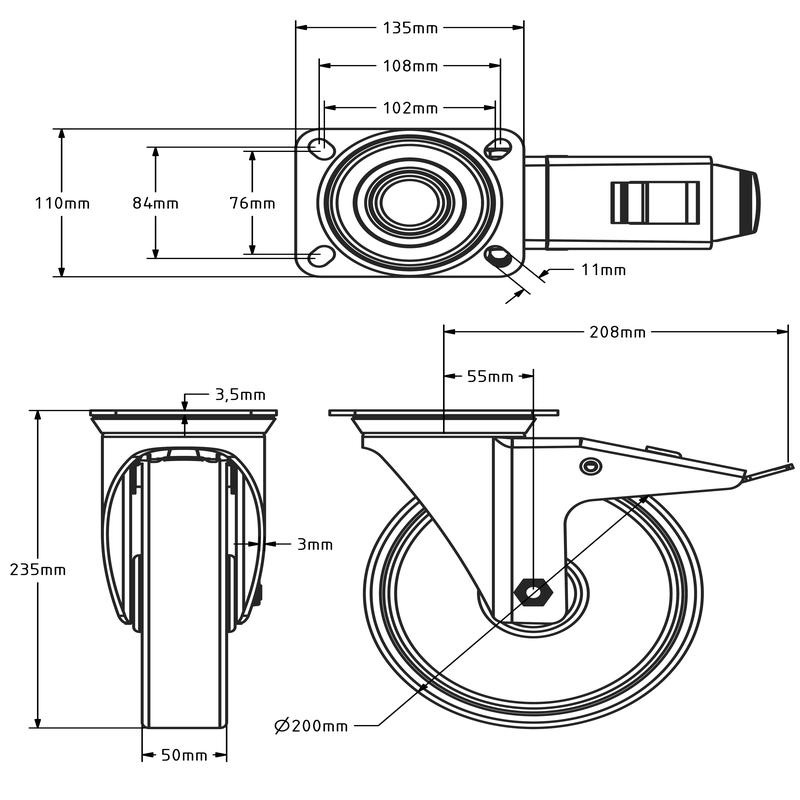

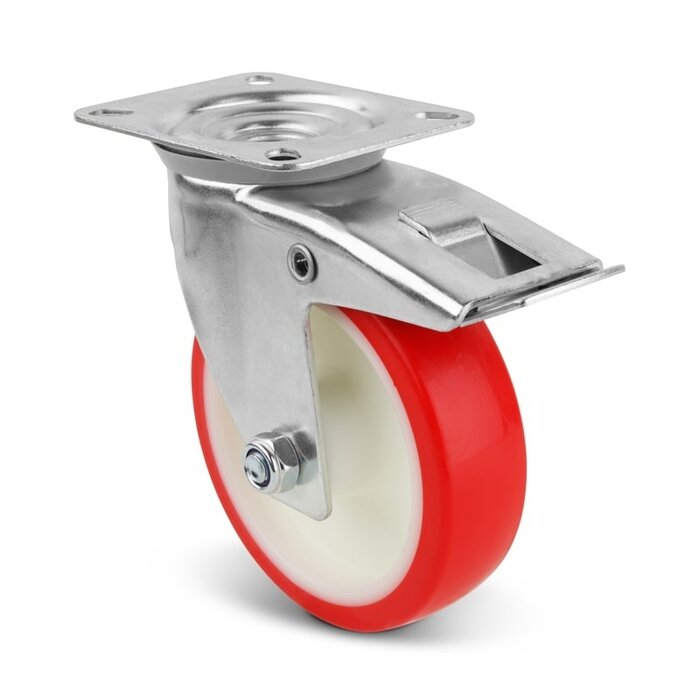

PU swivel castor with brake 200 mm with plate mounting - 400 kg
Swivel castors with brakes and plate mounting.
Pressed steel fork (galvanised ) with a sealed double ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Wheels with a red polyurethane tyre (approx. 95 Shore A), injected onto a white polyamide rim with roller bearing.
Discount for orders of 24 or more, see scaled prices or contact us for a quote.
Price on request for orders of 50 or more.
Read more
Specifications
- Article number: 430.141
- Wheel bearing: Roller bearing
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 95 shore A
- Bandage: Polyurethane, injected
- Wheel diameter: 200 mm
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Pressed sheet steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 55 mm
- Bolt hole spacing: 105 x 80 - Ø 11 mm
- Plate size: 135 x 110 mm
- Building height: 235 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 400 kg
- Wheel width: 50 mm
