PU swivel castor with brake 80 mm - ball bearing - 120 kg
Show all:
Casters,Polyurethane wheels
Description

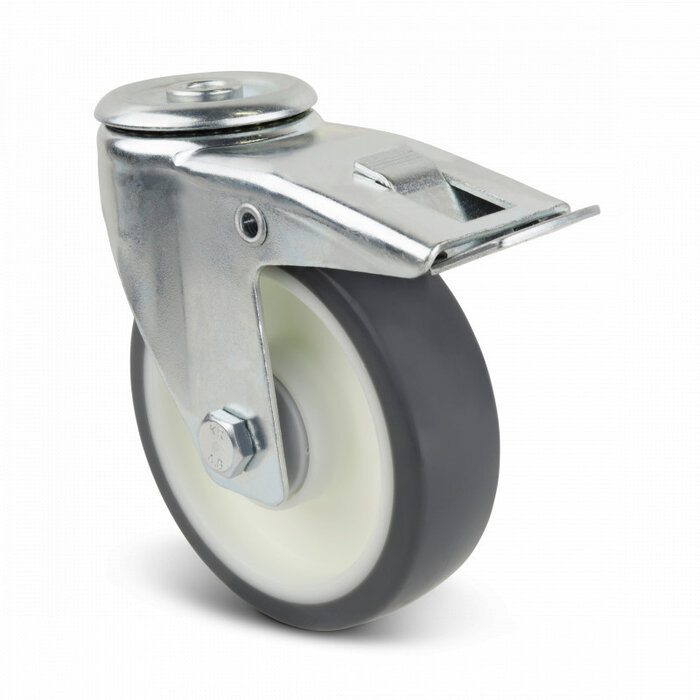

PU swivel castor with brake 80 mm with ball bearing and bolt hole 12 - 120 kg
-braked swivel castors with one bolt hole attachment.
Sheet steel pressed fork (galvanised ) with a double ball swivel.
The brake simultaneously blocks the swivel and the wheel.
Wheels with greypolyurethane tyres (98 Shore), injected onto a polyamide rim with a centred ball bearing and wheel caps.
Discount for orders of 50 or more, see scaled prices or contact us for a quote.
Read more
Specifications
- Article number: 435.611
- Bandage: Polyurethane, injected
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 95 shore A
- Wheel diameter: 80 mm
- Wheel bearing: Central ball bearing with wheel covers
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized

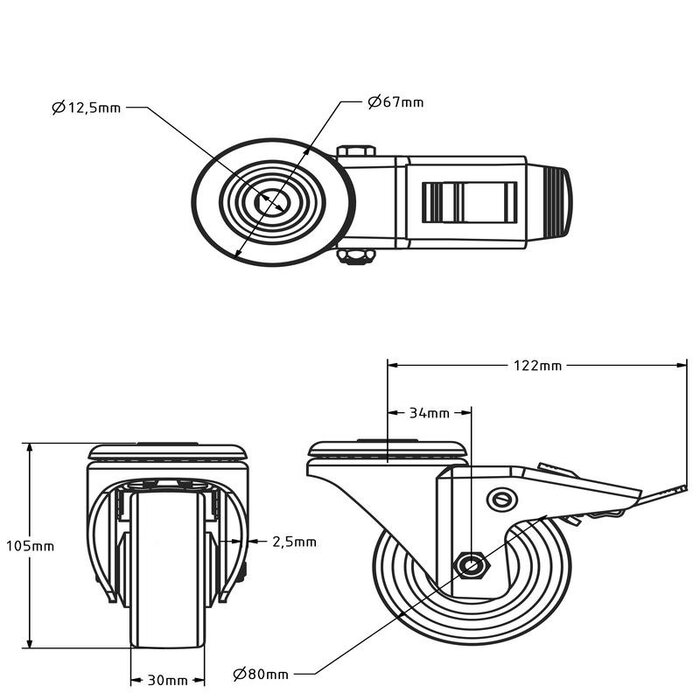

- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Building height: 105 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 120 kg
- Wheel width: 30 mm
Show all
Specifications
- Article number: 435.611
- Bandage: Polyurethane, injected
- Bolt hole diameter: 12.5 mm
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 95 shore A
- Wheel diameter: 80 mm
- Wheel bearing: Central ball bearing with wheel covers
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Bolt hole attachment
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Building height: 105 mm
- Temperature: - 20 / + 80 °C
- Carrying capacity: 120 kg
- Wheel width: 30 mm
