PU swivel castor with fixed brake 160 mm - reinforced - ball bearing - 800 kg

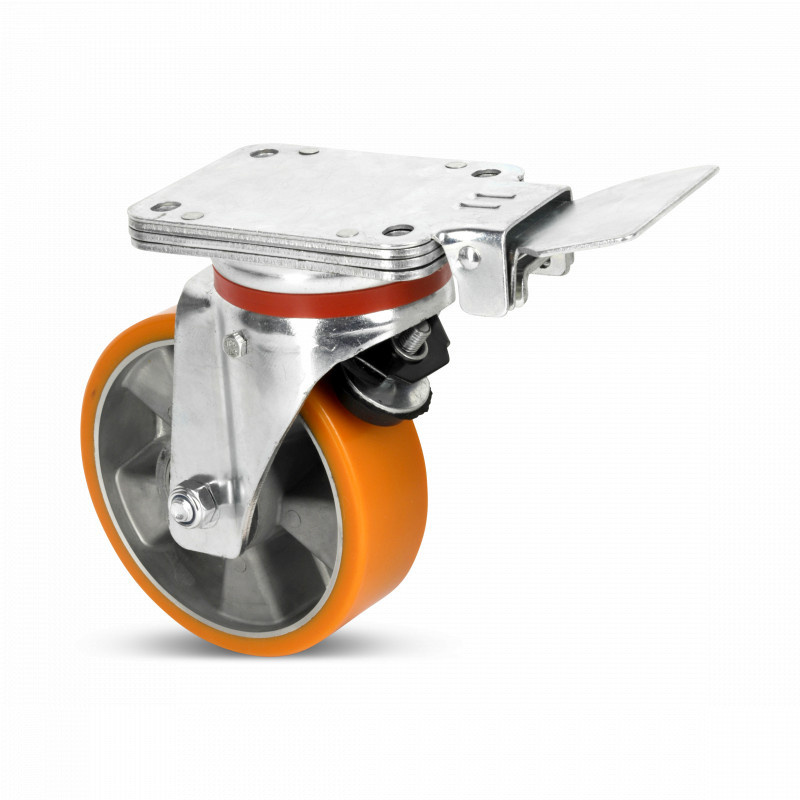

Fixed brake

Unlike traditional brake systems, the fixed brake does not move with the swivel castor. This means that the brake always protrudes and can be used regardless of the swivel position. Because the brake system does not rotate, the swivel angle is shorter, making it suitable for use in compact spaces. The brake is adjustable and locks both the wheel and the fork without play.

Resistant to shocks and impacts

The reinforced swivel fork, in combination with a thick polyurethane tire, is designed for intensive use of swivel casters. The heavy-duty swivel casters with brakes are ideal for heavy-duty transport trolleys that must be able to withstand shocks and side impacts. The swivel fork has a double hardened ball track, securely riveted at multiple points, ensuring play-free operation. The swivel castor has a short protruding brake that locks both the wheel and the swivel head simultaneously without play.

Wear-resistant and durable

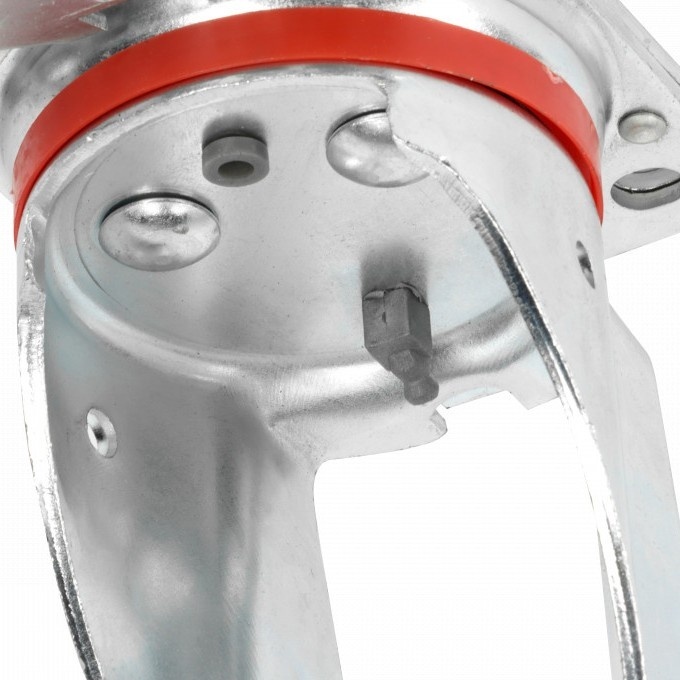

The polyurethane tire is highly resistant to rough concrete floors with steel chips, dust, oil, and other contaminants. Polyurethane combines hardness with elasticity, resulting in minimal wear when rubbing and coming into contact with rough surfaces. The reinforced 14 mm thick swivel ring is well lubricated and can be relubricated via the grease nipple. The thickened swivel ring is almost completely sealed and is additionally protected against dust and dirt by a red dust ring.

Low rolling resistance

The natural properties of polyurethane result in low friction with the ground, which means low rolling resistance and long rolling continuity. The wheels are equipped with a precision ball bearing (6204 ZZ) on both sides.
