PU wheel 200 mm - ball bearing 12 mm axle hole - 500 kg
Show all:
Casters,Industrial wheels
Description

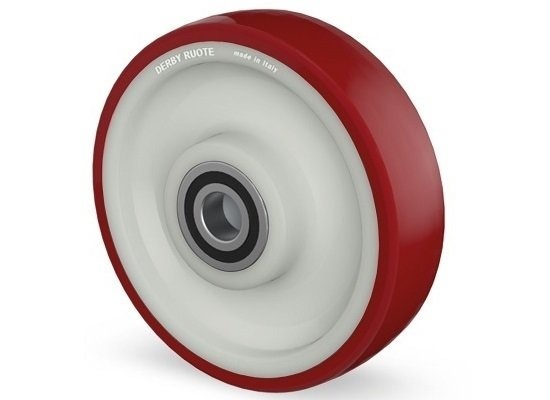

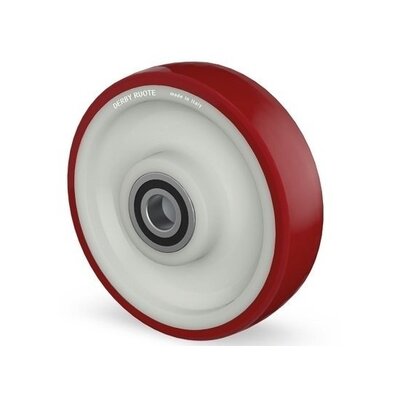

PU wheel 200 mm with ball bearing, axle hole 12 mm - 500 kg
Wheels with a red polyurethane tyre (approx. 95 Shore A), injected onto a white polyamide rim with ball bearings.
The ball bearings are fitted with two plastic axle caps with a 12 mm axle hole (M12x60 mm installation).
Read more
Specifications
- Article number: 155.240
- Wheel diameter: 200 mm
- Wheel width: 50 mm
- Hub length: 60 mm
- Temperature: - 20 / + 80 °C
- Type of wheel: Loose wheel
- Rim: Polyamide (PA6)
- Wheel bearing: Double ball bearing
- Bandage: Polyurethane, injected
- Tyre hardness: approx. 95 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 3
- Suitable for: Flat and rough surface
- Shaft diameter: 20 mm
- Carrying capacity: 500 kg
Show all
Specifications
- Article number: 155.240
- Wheel diameter: 200 mm
- Wheel width: 50 mm
- Hub length: 60 mm
- Temperature: - 20 / + 80 °C
- Type of wheel: Loose wheel
- Rim: Polyamide (PA6)
- Wheel bearing: Double ball bearing
- Bandage: Polyurethane, injected
- Tyre hardness: approx. 95 shore A
- Rolling resistance: 4
- Wear-resistant: 4
- Soundproof: 3
- Suitable for: Flat and rough surface
- Shaft diameter: 20 mm
- Carrying capacity: 500 kg
