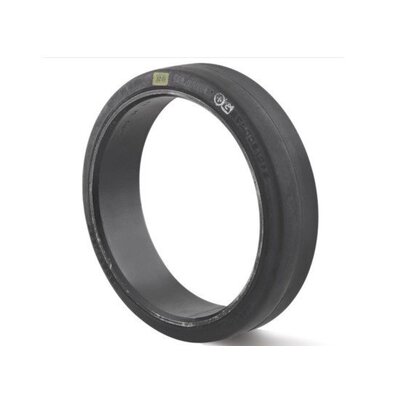

Rubber press-on tyre 200x75x100 mm - steel press ring - 500 kg
Description
Rubber press bandage Ø 200 x 75/100 mm
Pressure band with an elastic rubber bandage (approx. 65º Shore A), vulcanised onto a steel cylindrical press ring.
Assembly: Cylindrical press-on bands are supplied with a sub-size (fit Z9). When the bandage is pressed onto a rim/core, it should have an H11 fit.
Read more
Specifications
- Article number: 190.642
- Type of wheel: Pallet Roller
- Bandage: Elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Wheel diameter: 200 mm
- Wheel width: 75 mm
- Rim: Steel press ring
- Temperature: - 20 / + 80 °C
- Carrying capacity: 500 kg
- Tread type: Cylindrical
- Inner rim: 100 mm
- Passing: H11
Show all
Specifications
- Article number: 190.642
- Type of wheel: Pallet Roller
- Bandage: Elastic rubber, vulcanized
- Tyre hardness: approx. 65 shore A
- Wheel diameter: 200 mm
- Wheel width: 75 mm
- Rim: Steel press ring
- Temperature: - 20 / + 80 °C
- Carrying capacity: 500 kg
- Tread type: Cylindrical
- Inner rim: 100 mm
- Passing: H11
