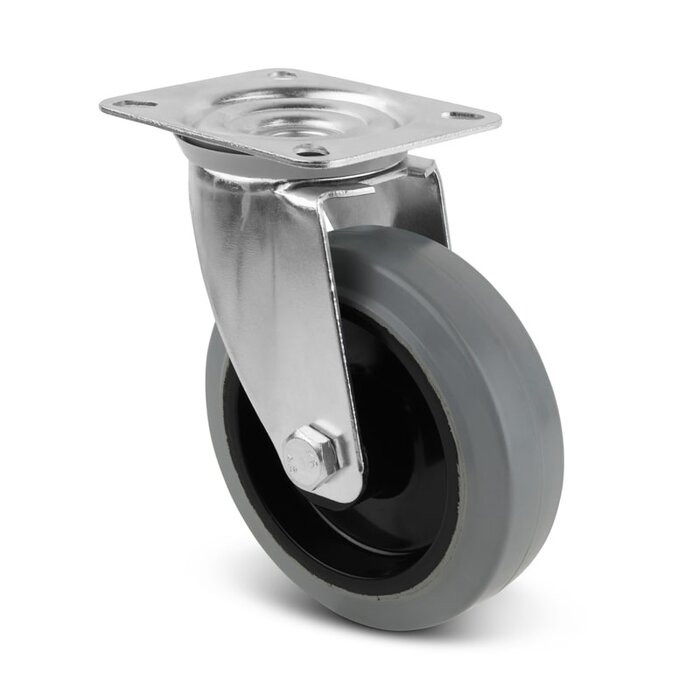

Rubber swivel castor 100 mm - roller bearing - 160 kg
Show all:
Casters,Rubber wheels
Description
Swivel castor 100 mm with grey elastic rubber tyre
Swivel castors with a plate attachment (2.5 mm thick).
Pressed steel fork, 2.5 mm, (galvanised) with a sealed double ball bearing swivel.
Wheels with grey elastic rubber tyres (approx. 65 Shore A), vulcanised onto black polyamide rims with roller bearings.
Non-marking, the grey tyre does not leave streaks and has a very low rolling resistance.
Read more
Specifications
- Article number: 413.115
- Tyre hardness: approx. 65 shore A
- Wheel width: 36 mm
- Wheel diameter: 100 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Carrying capacity: 160 kg
- Bandage: Gray elastic rubber, vulcanized
- Wheel bearing: Roller bearing / Needle bearing
- Rim: Polyamide (PA6)
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Caster

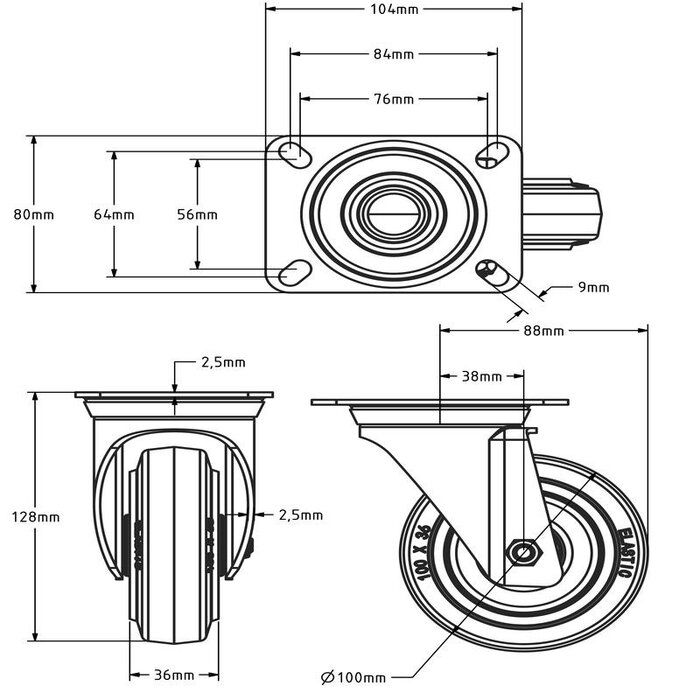

- Gaff rash: 38 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 104 x 80 mm
- Building height: 128 mm
- Temperature: - 20 / + 60 °C
