Rubber swivel castor 125 mm - ball bearing - 250 kg
Show all:
Casters,Rubber wheels
Description

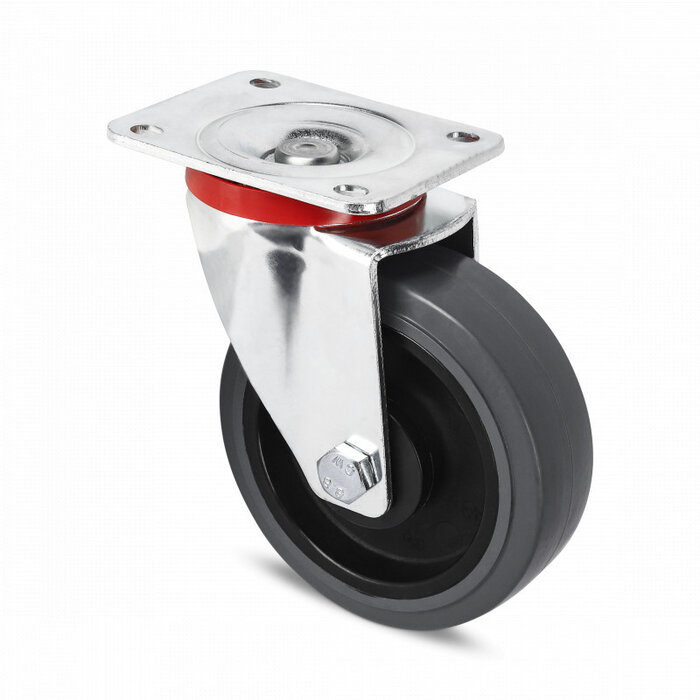

Rubber swivel castor 125 mm with ball bearing and plate - 250 kg
Swivel castors with a plate attachment (4 mm thick).
Reinforced 3.5 mm pressed steel plate fork (galvanised) with a sealed double ball swivel.
Wheels with grey elastic rubber tyres (approx. 70 Shore A), vulcanised onto black polyamide rims with ball bearings and plastic wheel covers.
Non-marking, the grey tyre leaves no stripes and has a very low rolling resistance.
Discounts available for orders of 24 or more. Contact us for a quote.
Read more
Specifications
- Article number: 412.220
- Tyre hardness: approx. 70 shore A
- Wheel width: 36 mm
- Wheel diameter: 125 mm
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Carrying capacity: 250 kg
- Bandage: Gray elastic rubber, vulcanized
- Wheel bearing: Double ball bearing, proportional
- Rim: Polyamide (PA6)
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Caster
- Gaff rash: 40 mm

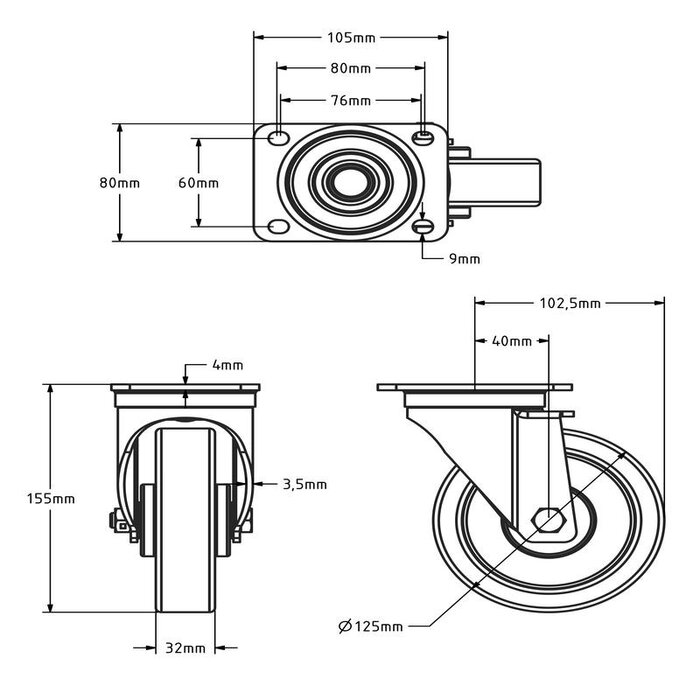

- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 105 x 80 mm
- Building height: 155 mm
- Temperature: - 20 / + 60 °C
