Rubber swivel castor with brake 100 mm - plate - 80 kg
Show all:
Casters,Rubber wheels
Description

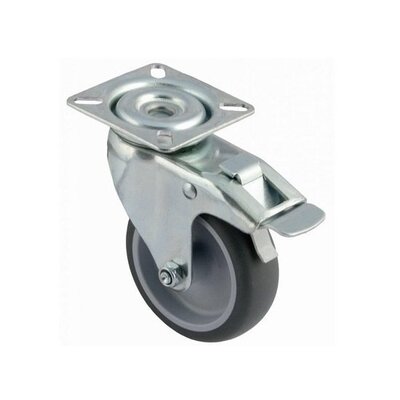

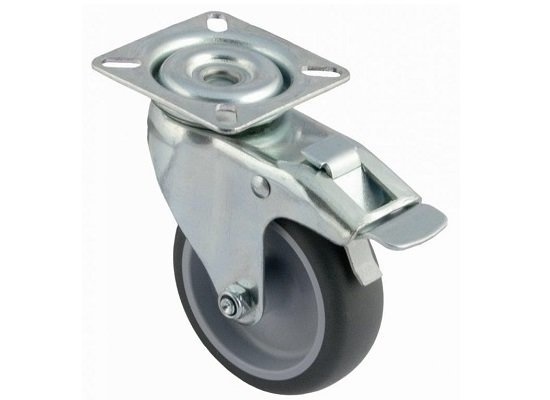

Rubber swivel castor with brake 100 mm with plate - 80 kg
Swivel castors with brake and plate attachment.
The brake simultaneously blocks the swivel and the wheel.
Pressed steel fork (galvanised) with a double ball swivel.
Wheels with greyTPR rubber tyres (non-marking), injected onto plastic rims with plain bearings.
Read more
Specifications
- Article number: 320.031
- Wheel bearing: Slide bearing
- Suitable for: Flat and rough surface
- Soundproof: 3
- Wear-resistant: 3
- Rolling resistance: 3
- Tyre hardness: approx. 88 shore A
- Bandage: Gray Thermoplastic rubber (TPR), injected
- Wheel diameter: 100 mm
- Rim: Polypropylene
- Brake: Locks wheel and swivel simultaneously
- Fork: Pressed sheet steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake
- Gaff rash: 34 mm
- Bolt hole spacing: 38 x 38 / 48 x 48 - Ø 6.2 mm
- Plate size: 60 x 60 mm
- Building height: 122 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 80 kg
- Wheel width: 24 mm
