Rubber swivel castor with brake 125 mm - ball bearing - 250 kg
Show all:
Casters,Rubber wheels
Description

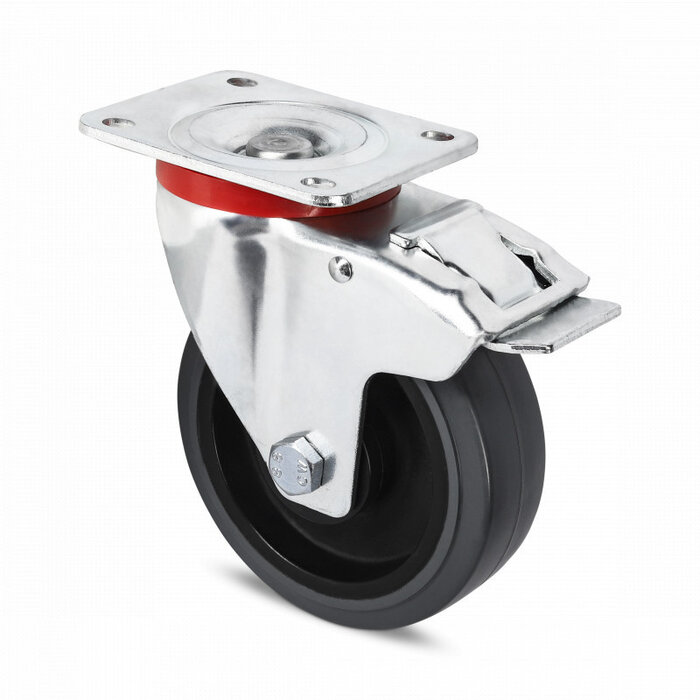

Rubber swivel castor with brake 125 mm with ball bearing and plate - 250 kg
Swivel castors with a plate attachment.
Reinforced sheet steel pressed fork (galvanised) with a sealed double ball swivel.
The brake simultaneously blocks the turntable and the wheel.
Wheels with grey elastic rubber tyres (approx. 70 Shore A), vulcanised onto black polyamide rims with ball bearings and plastic wheel covers.
Non-marking, the grey tyre leaves no stripes and has a very low rolling resistance.
Read more
Specifications
- Article number: 412.221
- Wheel bearing: Double ball bearing, proportional
- Suitable for: Flat surface and outside area
- Soundproof: 5
- Wear-resistant: 4
- Rolling resistance: 4
- Tyre hardness: approx. 70 shore A
- Bandage: Gray elastic rubber, vulcanized
- Wheel diameter: 125 mm
- Rim: Polyamide (PA6)
- Brake: Locks wheel and swivel simultaneously
- Fork: Steel, galvanized
- Assembly: Plate mount
- Type of wheel: Swivel castor with brake

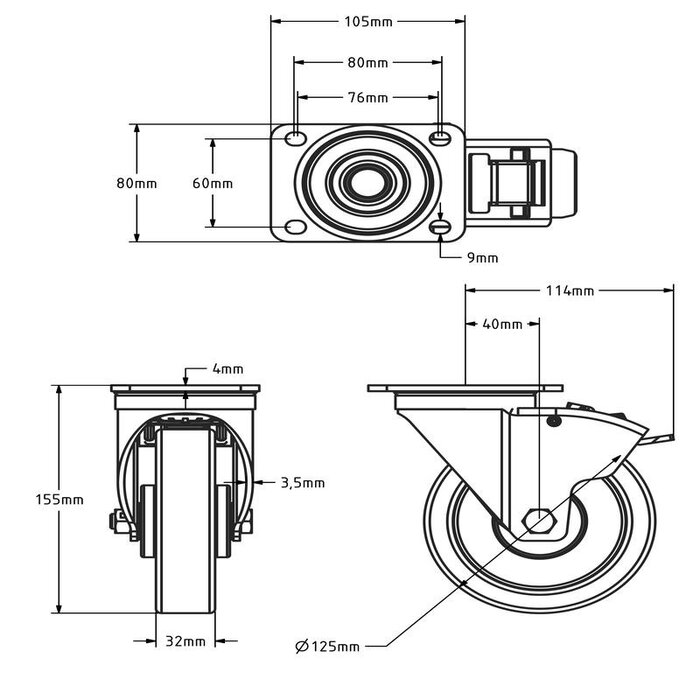

- Gaff rash: 40 mm
- Bolt hole spacing: 80 x 60 - Ø 9 mm
- Plate size: 105 x 80 mm
- Building height: 155 mm
- Temperature: - 20 / + 60 °C
- Carrying capacity: 250 kg
- Wheel width: 36 mm
